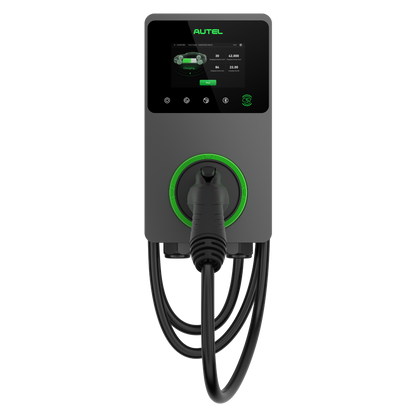

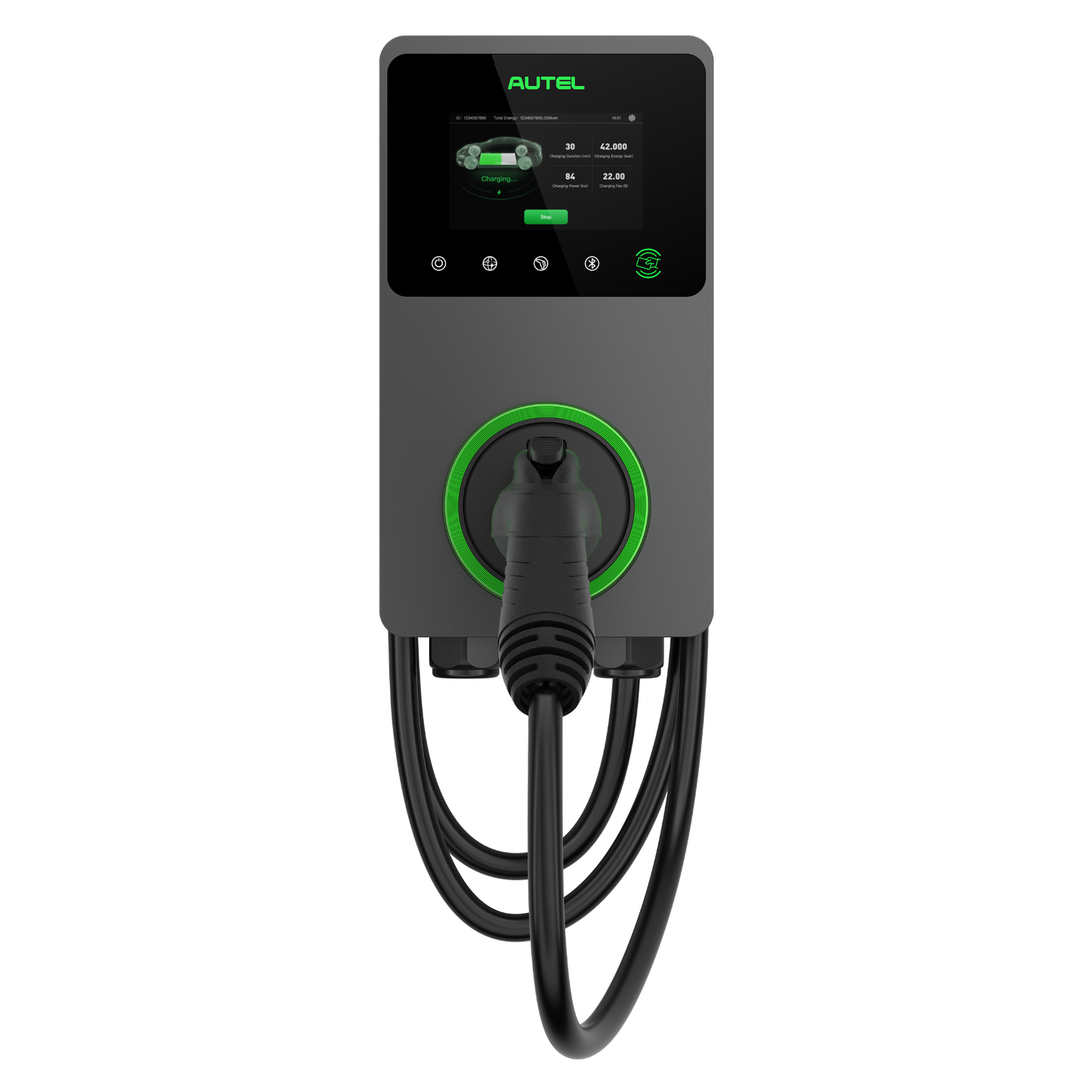

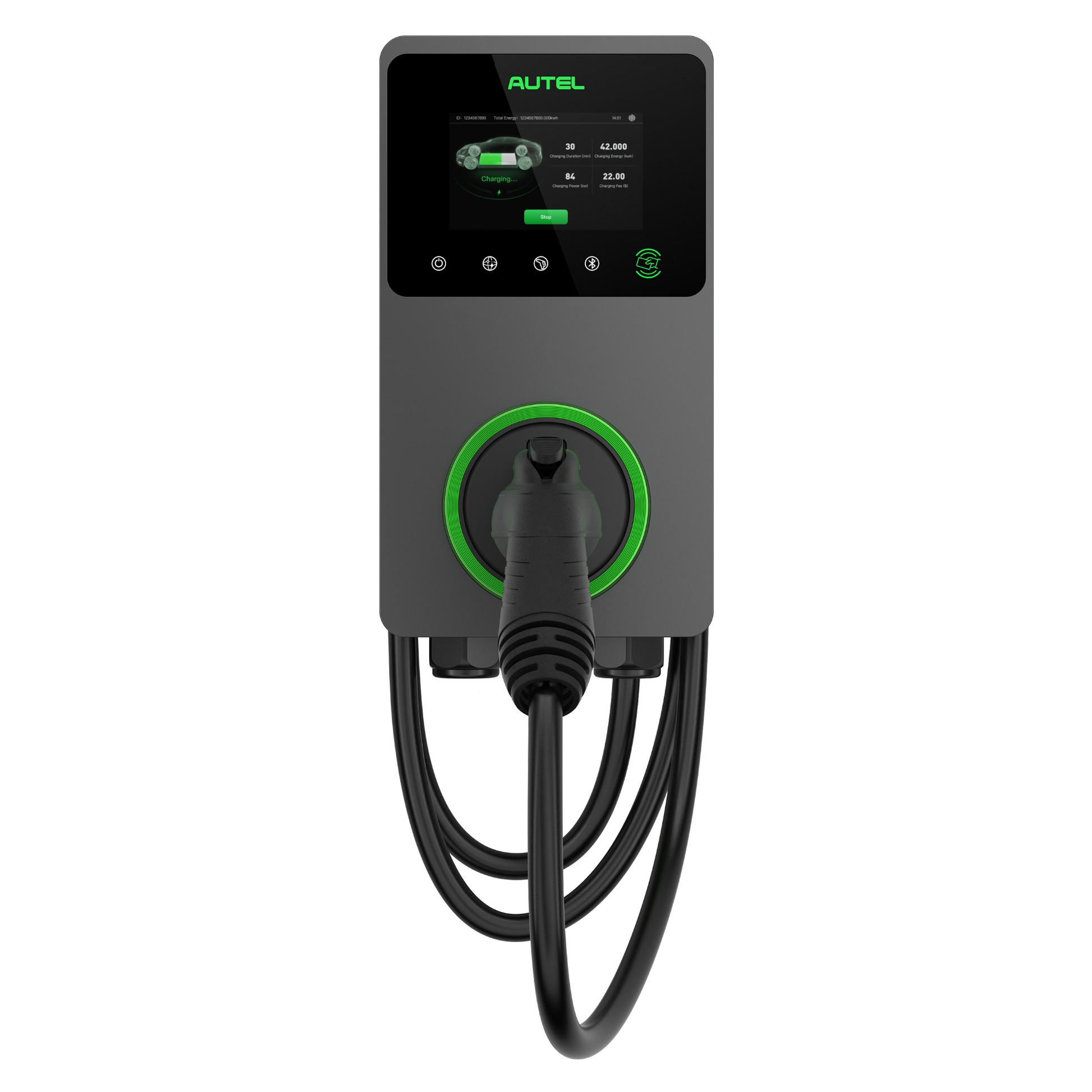

AC Elite Business 50A 12kW EV Charger with Touch Screen

DESCRIPTION

• 50A, 12kW for Fast Charging
• Equipped with a 5-inch Touchscreen for Intuitive Operation
• Connect via Bluetooth/Wi-Fi/Ethernet/RS485/4G
• Easy to Control, Manage and Schedule Charging via App
• Maximize Profit by Utilizing Autel CSMS
• 25ft Cable Length for Flexible and Convenient Charging

SPECIFICATIONS

Model Number

Maxi US AC W12-L-4G

Connector Type

SAE J1772

Dimensions (H*W*D)

13” x 7” x 3” (335 x 187 x 85 mm)

Weight

14.8 lbs. (6.7 kg)

Input cord

Hardwired only

Warranty

3 years

Charging Cable Length

25 ft. (7.5 m)

Connectivity

4G, Bluetooth, Wi-Fi, Ethernet, RS485

User authentication

App, AutoStart, RFID card

Advanced Feature

Adaptive Load Management (ALM); Dynamic Load Balancing (DLB)

Output Rating

Maximum 12 kW (240 VAC @ 50 A model)

Input Rating

208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection

Operating Temperature

-40 to 131 °F (-40 to 55 °C)

Mounting

Wall-mounted or floor using a pedestal
