Grizzl-e

Alpha Classic 40A

Alpha Classic 40A

SKU: AL1-14-24-PB

Regular price
Price: $599.00 USD
Regular price
List Price: $799.00 USD
Sale price
Price: $599.00 USD
You Save: $200.00 USD (25%)
View Cart
DESCRIPTION

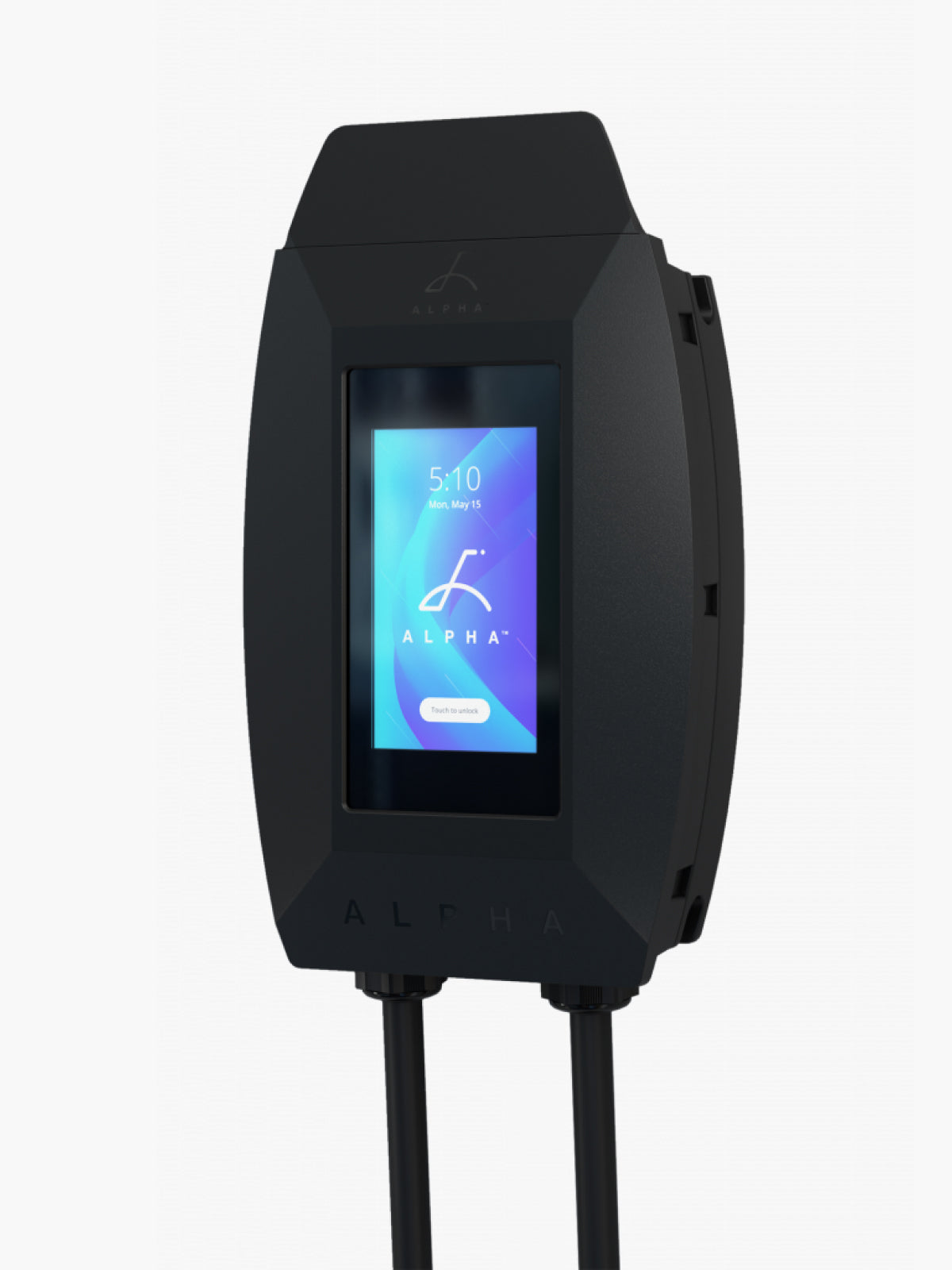

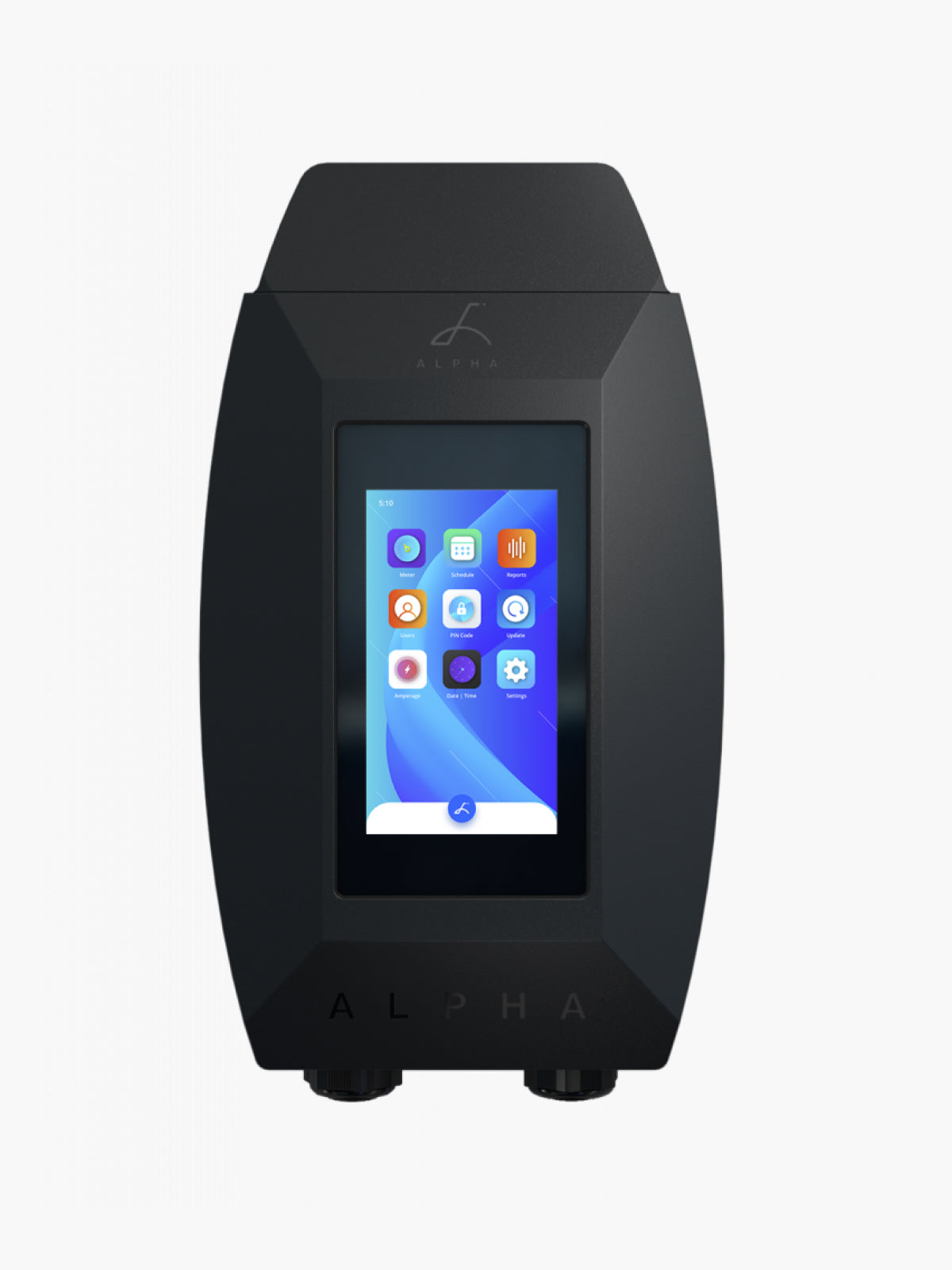

Alpha Classic is an interactive, touch-screen Level 2 EV Charger. The 7-inch touch-screen color display gives you direct interaction with the charger to control settings, monitor real-time charging, create a charging schedule, set maximum power, and more. - 7-inch LCD Multi-function touchscreen display. - Locally Smart Charging Features. View real-time charging statistics, create a charging schedule, and track power consumption. - Protect your charger with a PIN code. - User control. Share the charger with your neighbour and split the costs – separate metering and reporting for each user. - Beautiful design based on top-rated Grizzl-E Charging hardware. - Multi-language User Interface: English, French, Spanish and Chinese - Updates through a USB stick. - 1 Year Warranty

SPECIFICATIONS
Model number

AL1-14-24-PB

Material

Plastic

Country of origin

Canada

Type

Charger

Weight

11.00 kg / 24.25 lbs

Dimensions

L - 510 mm / 20.08 in

W - 610 mm / 24.02 in

H - 150 mm / 5.91 in

Type

AC Level 2

Connector

Tyype 1 (SAE J1772)

Max power

40A 10 kW

Plug type

NEMA 14-50, NEMA 6-50

Protection

NEMA 3R

Smart function

No Internet Connection; Touch Screen

Default warranty

1 Year

Adjustable current

32A, 24A, 16A

Output cable length

24ft (7.3m)

Enclosure dimensions

16″ x 9.2″ x 3.5″

Operating temperature

-30C .. +50C (-22F .. 122F)
