2pcs 320 Watt Monocrystalline Solar Panel

DESCRIPTION

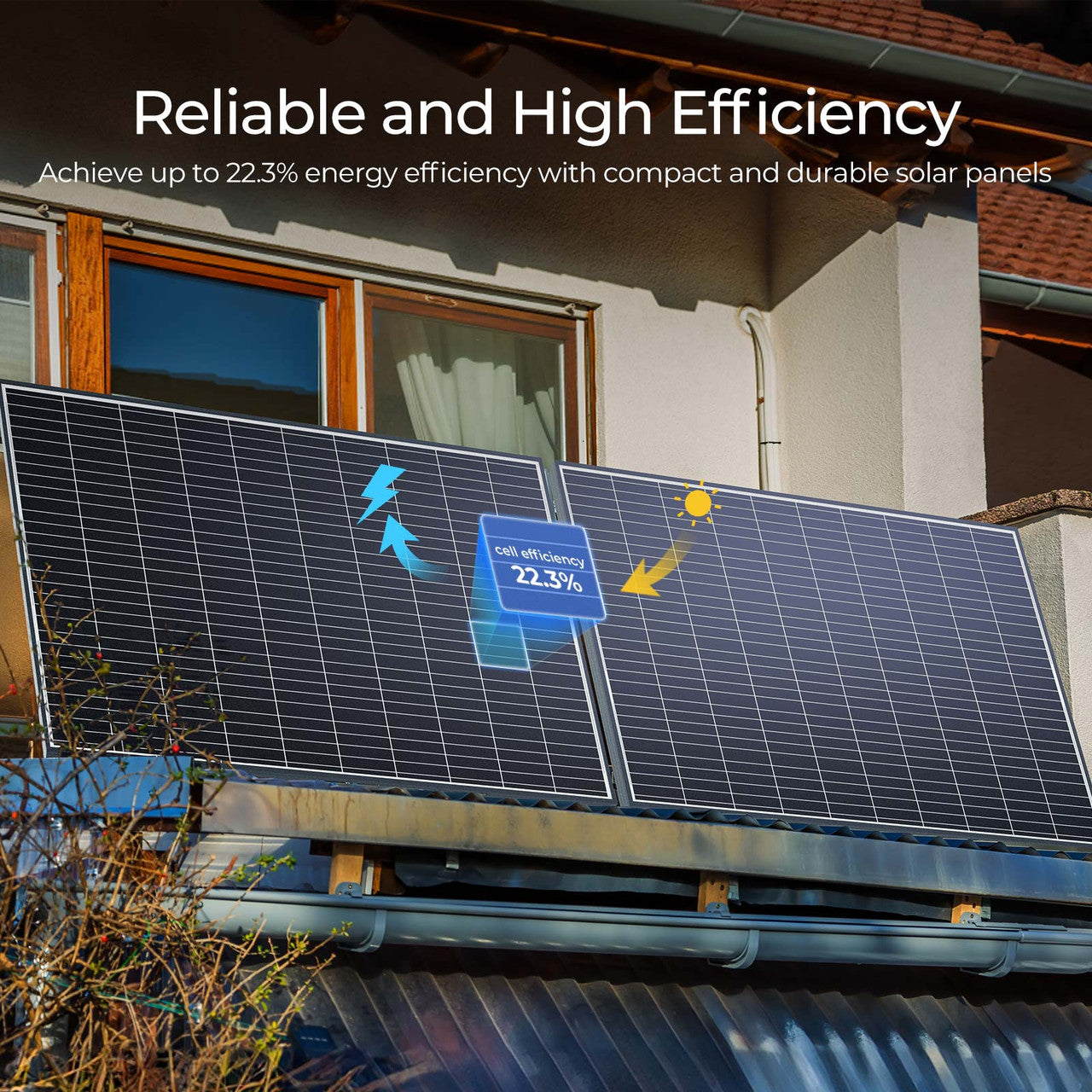

• Uses high-efficiency PERC cells for maximum energy output
• Fewer modules required for efficient rooftop installation
• Anti-corrosion aluminum frame for long-lasting reliability
• Quick and easy setup to save time during installation
• Eligible for up to 30% Residential Clean Energy Credit

SPECIFICATIONS

Max Power at STC: 320W

Open Circuit Voltage (Voc): 40.3V(±5%)

Short Circuit Current (Isc): 10.23A(±5%)

Optimum Operating Voltage (Vmp): 33.0V

Optimum Operating Current (Imp): 9.70A

Module Efficiency: 19.20%

Cell Efficiency: ≥22%

Maximum System Voltage: 1500 VDC UL

Maximum Series Fuse Rating: 20A

Cell Type: Monocrystalline (6.3 x 6.3 inches)

Number of Cells: 60 (6 x 10)

Dimensions: 65.6 x 39.4 x 1.4 inches (1665 x 1002 x 35 mm)

Weight: 39.7 lbs (18 kg)

Front Glass: Tempered Glass 0.13 in (3.2 mm)

Output Cables: 14 AWG (1.96 ft long)

Operating Temperature: -40°F to 185°F / -40℃ to 85℃F
