800-Watt 12-Volt Solar Basic kit w/ 60-Amp MPPT Charge Controller (Rigid Solar Panels)

DESCRIPTION

• Solar power customized kit
• More energy, even in partially shaded areas
• Consistent, environmentally-friendly power supply
• Multiple options and free combination
• 25-year performance warranty

SPECIFICATIONS

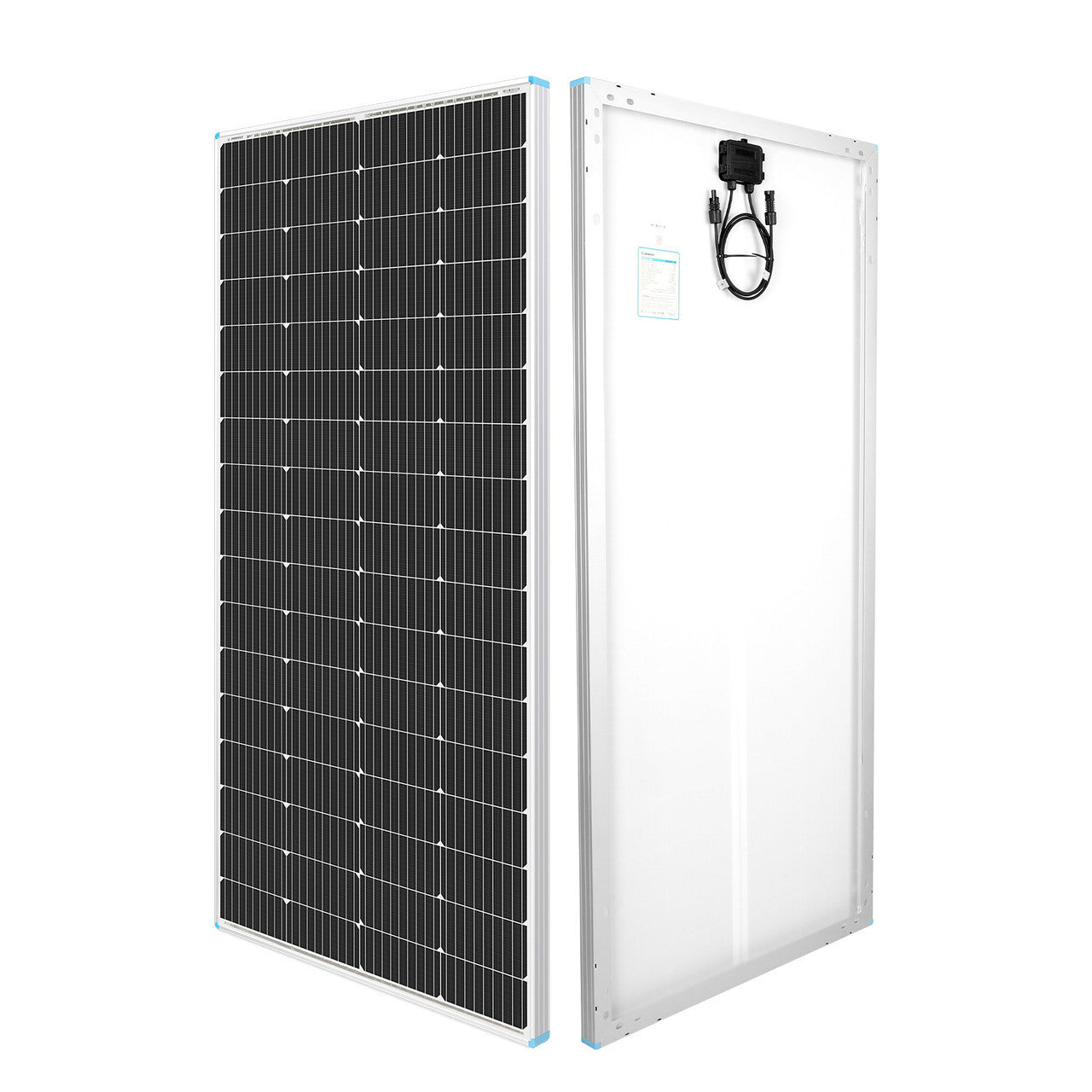

Max Power at STC: 200W

Open Circuit Voltage: 23V

Short Circuit Current: 11.05A

Optimum Operating Voltage: 19.2 V

Optimum Operating Current: 10.42 A

Operating Temperature: -40°F~194°F / -40℃~90℃

Maximum System Voltage: 600 VDC UL

Maximum Series Fuse Rating: 20A

Dimensions: 58.7 x 27.5 x 1.38 in / 1491 x 699 x 35mm

Weight: 26.46 lb (12 kg)

Maximum Power at STC: 200W

Open-Circuit Voltage (Voc): 23.9V

Short Circuit Current: 10.74A

Optimum Operating Current (Imp): 10.02A

Maximum System Voltage: 600V DC

Maximum Series Fuse Rating: 15A

Operating Temperature: -40°F to 176°F (-40ºC to +80ºC)

Dimensions: 1605 x 748 x 3 mm (63.2 x 29.4 x 0.1 in)

Weight: 4.9 kg / 10.8 lbs

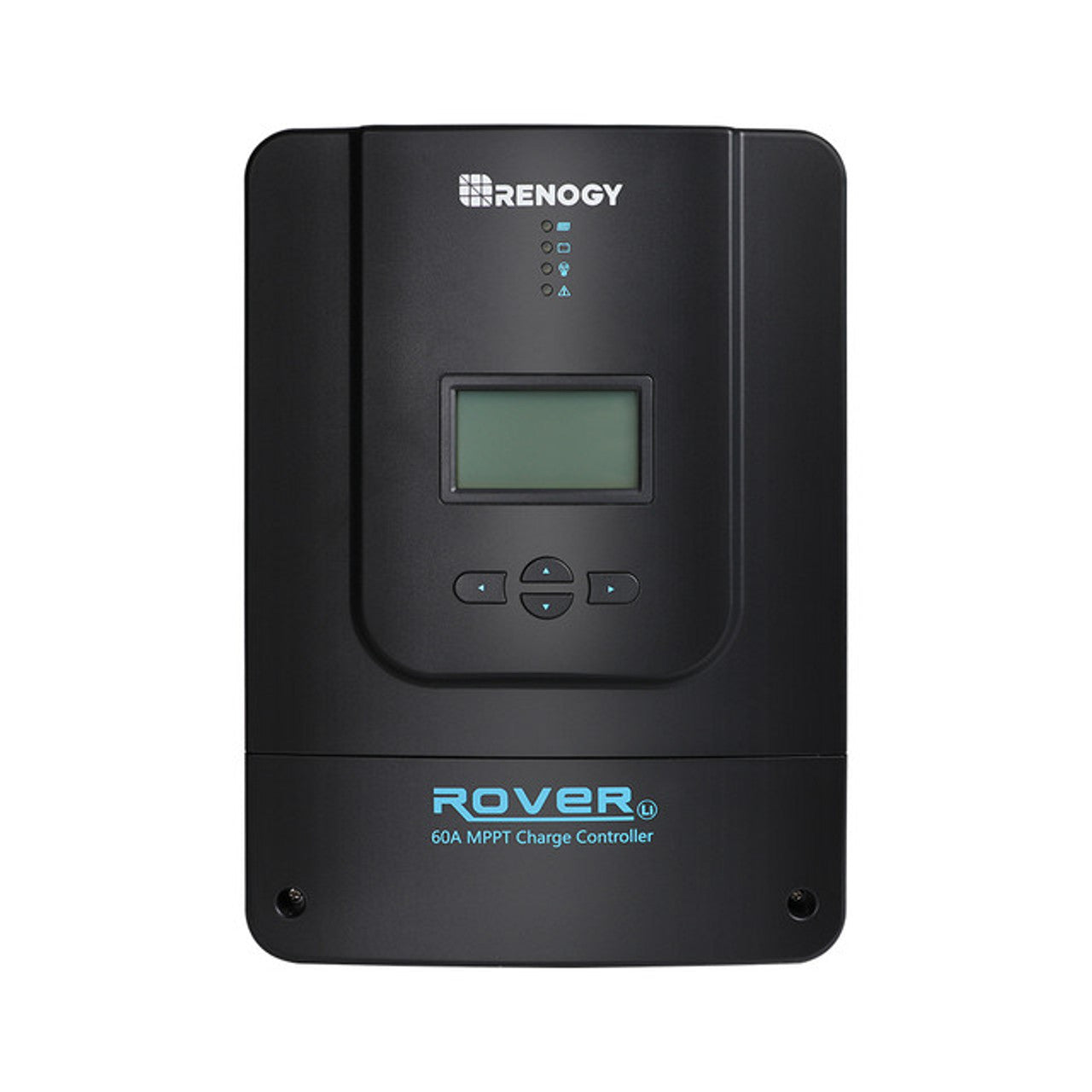

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Self-Consumption: 0.7W-1.2W

Operating Temperature: -31 °F to 113 °F (-35 °C to 45 °C )

Dimensions: 285 x 205 x 102mm (11.22 x 8.07 x 4.00in)

Weight: 7.9lbs

Nominal System Voltage: 12 V

Rated Charge Current: 60A

Max. PV Input Power: 800W

MPPT Voltage Range: 15 - 100 VDC /12V

Solar Input Voltage Range (VOC): 100 V

Max Input Current (short-circuit, Isc): 50A

Power Limiting Protection: Up to 800W/12V

Operating Temperature Range: -20 ℃ - 60℃

Dimensions: 9.43 x 7.36 x 4.28 inch / 239.4 x 187 x 108.8 mm

Weight: 5.07 lbs/ 2.30kg

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage: 12V

Voltage Range: 10V to 14.8V

Cycle Life (0.5C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Connection Method: Parallel (Up to 8)

Protection Rating: IP67

Maximum Charge Current: 100Ah

Maximum Discharge Current: 100Ah

Peak Discharge Current: 245A@30s

Charge Temperature Range: -4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: -13°F to 149°F (-25°C to 65°C)

Operation Relative Humidity: 10% to 95%

Communication Protocol: Bluetooth

Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)

Weight: 26.9 lbs. (12.2 kg)

Battery Type: Lithium Iron Phosphate

Rated Capacity (0.5C, 25°C): 100AH

Voltage: 12V

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Voltage: 14.4V

Protection Rating: IP65

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Charge Temperature Range: 32°F to 131°F (0°C to 55°C)

Discharge Temperature Range: -4°F to 140°F (-20°C to 60°C)

Connection Method: Series (Up to 4);Parallel (Up to 8); Series & Parallel (4P4S)

Terminal Bolt Size: M8

Housing Material: ABS

Recommended Terminal Torque: 10 N·m

Dimensions: 10.24 x 6.65 x 8.31 in (260 x 169 x 211 mm)

Weight: 23.15 lbs. (10.5 kg)

Continuous Output Power: 3000W

Peak Power Rating: 6000W

Output Voltage: 120V

Output Frequency: 60 Hz ± 0.1%

AC Output Sockets: 3

AC Terminal Block: 1

USB Power Port: 5V/2.1A

Power Output Control: AC On/Off Switch, and Remote Control

Output Waveform: Pure Sine Wave

Nominal Efficiency: > 90%

Operating Temperature Range: -4°F - 104°F

Cooling Fan: Thermally controlled

Dimensions: 18.9 x 9.0 x 4.0 in

Weight: 12.5 lb

Continuous Power: 3000W

AC Output Voltage Range: 100~120VAC configurable, 5V interval

Surge Power: 9000W

Nominal Efficiency: > 90% Peak

Output Waveform: Pure Sine Wave

Output Frequency : 50/60 Hz ± 0.1%

Input Voltage Range: 90-138 VAC

Input Wave Form: Sine Wave (Utility or Generator)

Operating Temperature: -20-40°C/-4-104°F

Storage Temperature: -30 ~ 70°C / -22 ~ 158°F

Dimensions: 20.1 x 11.2 x 7.6 in / 510 x 285 x 193 mm

Weight: 63.5 lbs / 28.8 Kg

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
