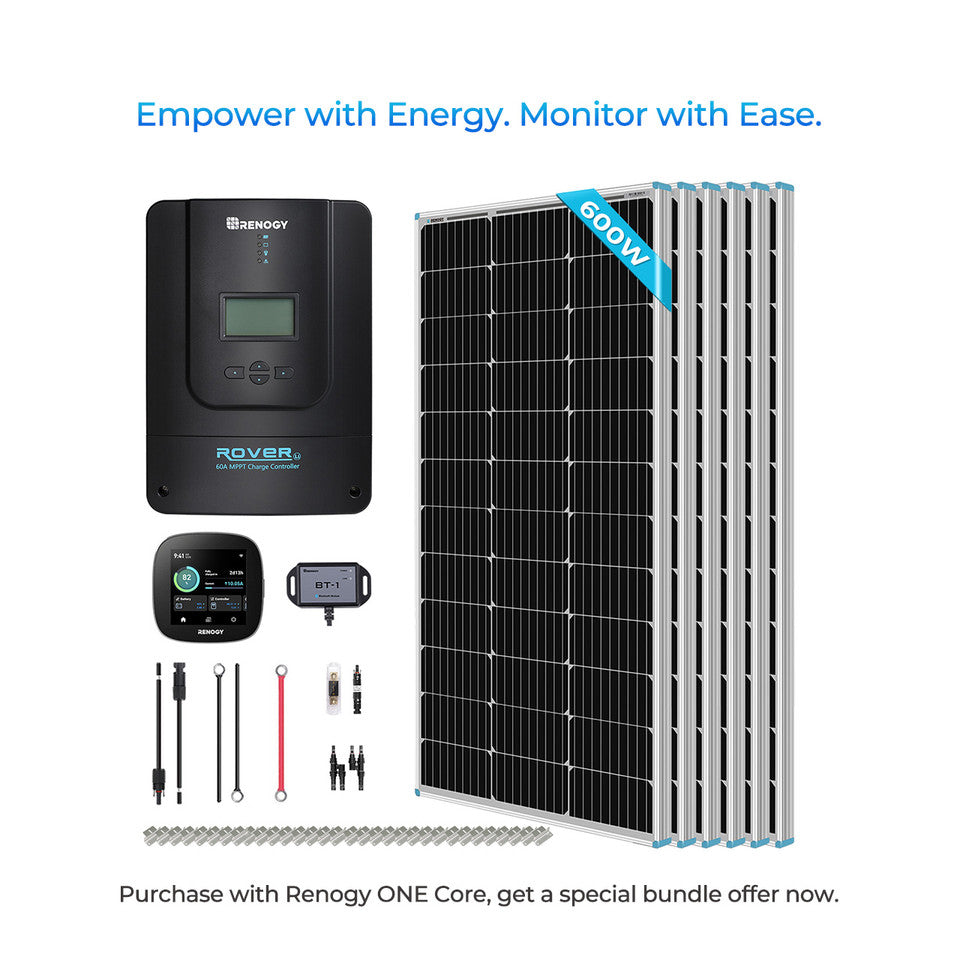

600-Watt 12-Volt/ 24-Volt Solar Premium Kit w/ 60-Amp MPPT Charger Controller + Renogy ONE Core Smart Panel

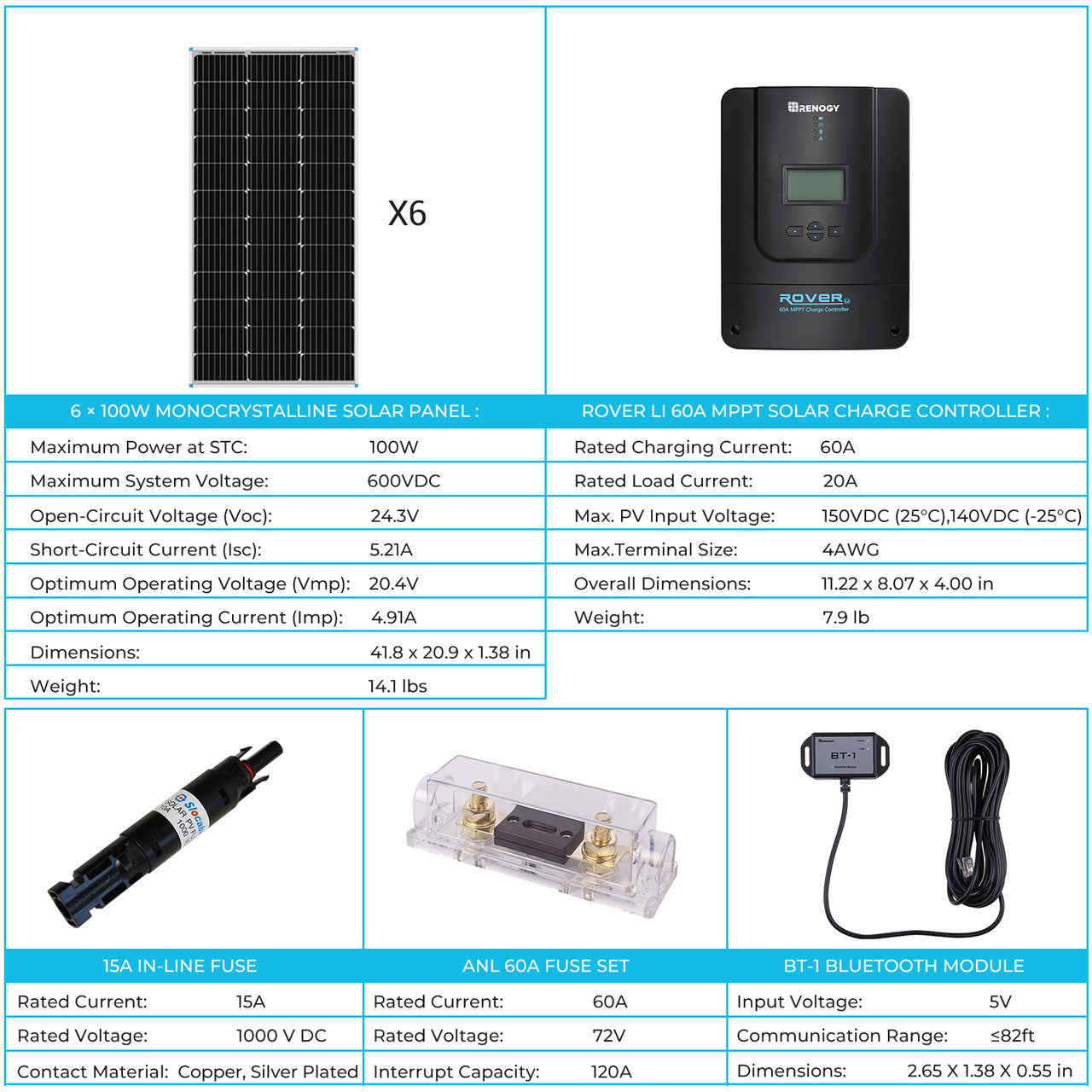

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x1.4 in

Weight: 14.1lbs/6.4kg

Nominal Voltage: 12V/24V/36V/48V Auto Recognition (for non-lithium batteries)

Rated Charge Current: 60A

Rated Load Current: 20A

Max. PV Input Voltage: 150 VDC (25°C), 140VDC (-25°C)

Max. PV Input Power: 800W/12V; 1600W/24V; 2400W/36V; 3200W/48V

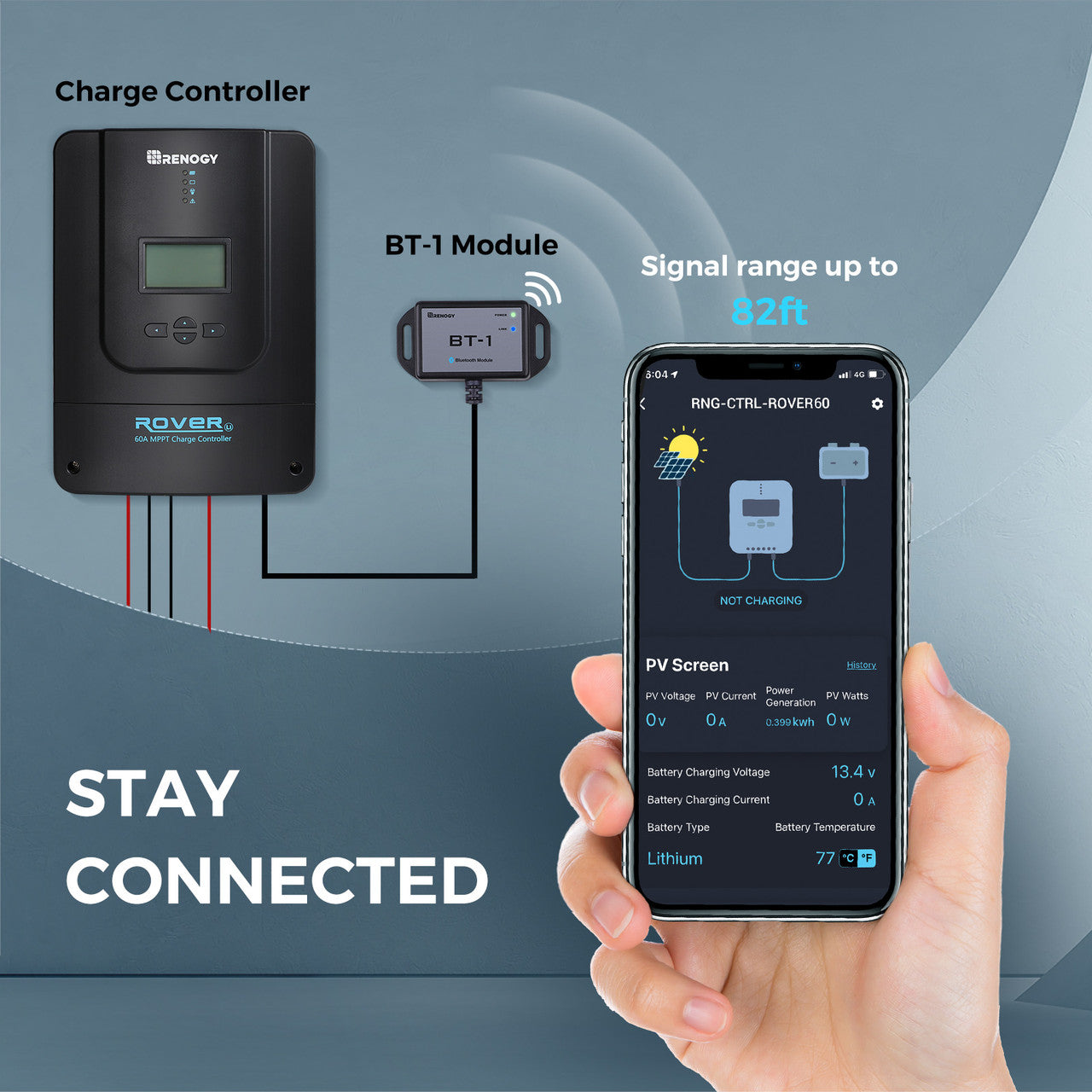

Compatible bluetooth: Renogy BT-1 Bluetooth module

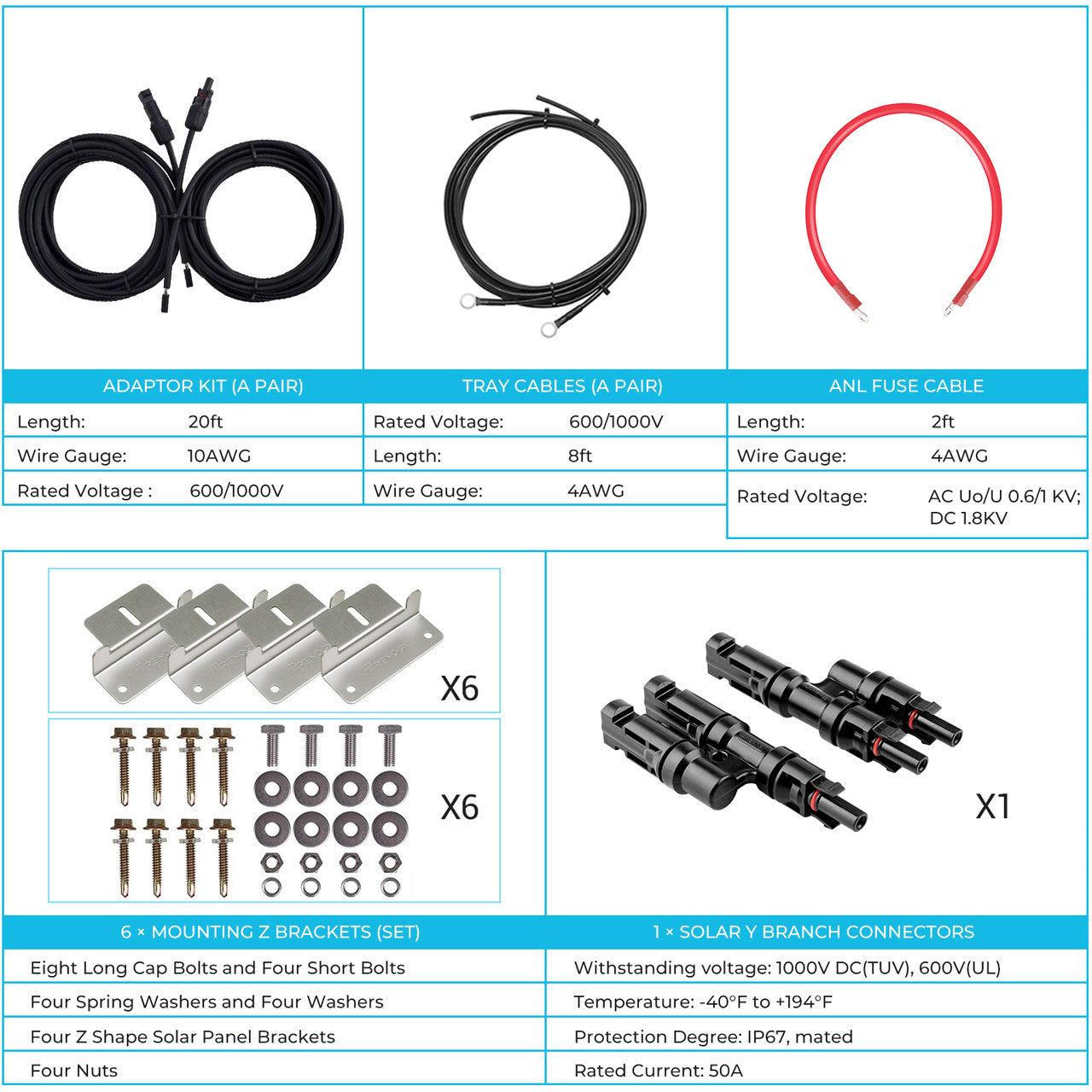

Length: 8ft

AWG: 4

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

Length: 2ft

AWG: 4

Rating Voltage: AC Uo/U 0.6/1 KV, DC 1.8KV

Temperature: -40°F to +194°F

Length: 20ft

AWG: 10

Rating Voltage: 600/1000V

Temperature: -40°F to +185°F

Rated Current: 15A

Rated Voltage: 1000 V DC

Contact Material: Copper, Silver Plated

Replaceable Fuse: Cylindrical PV Fuse (10x38mm

Current Rating: 60A

Voltage Rating: 72V

Interrupt Capacity: 360A (48V)

Input Voltage: 5V

Communication Range: ≤82ft

Compatibel Models: All Renogy Controllers with RJ12 port

Operation Temperature: -20°C~85°C (-4°F to 185°F)

Withstanding voltage: 1000V DC(TUV), 600V(UL)

Protection Class: Class II

Protection Degree: IP67, mated

Insulation Material: PC/PA

Temperature Range: -40°F to 194°F

Eight Long Cap Bolts and Four Short Bolts: Four Spring Washers and Four Washers

Four Z Shape Solar Panel Brackets: Four Nuts

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
