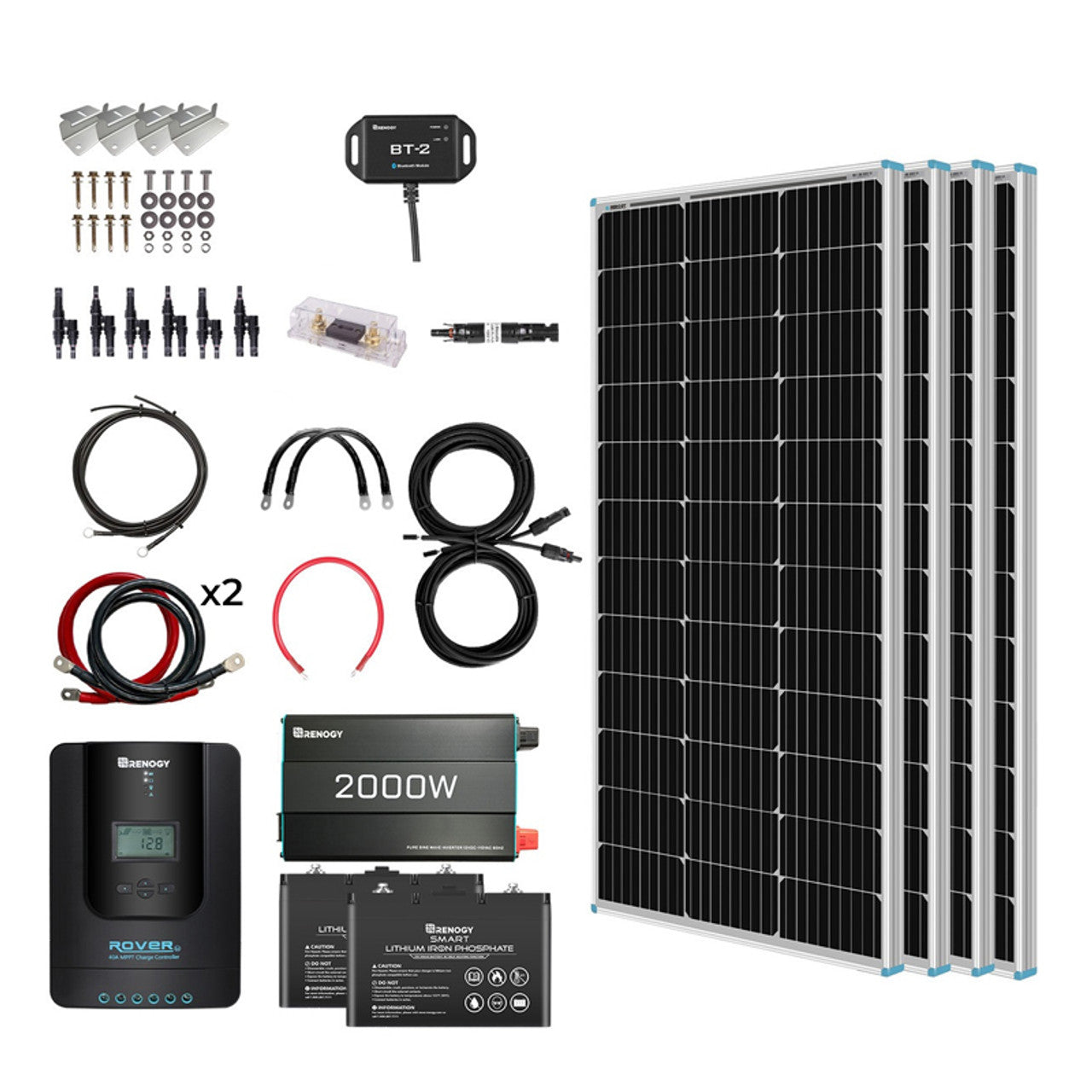

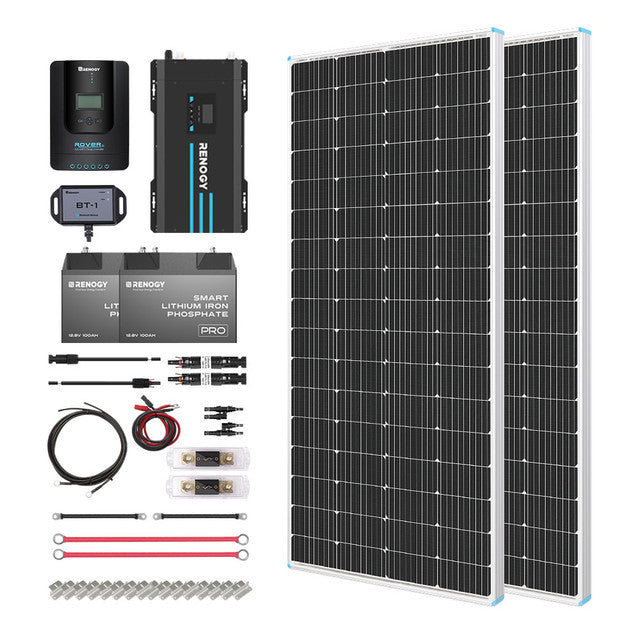

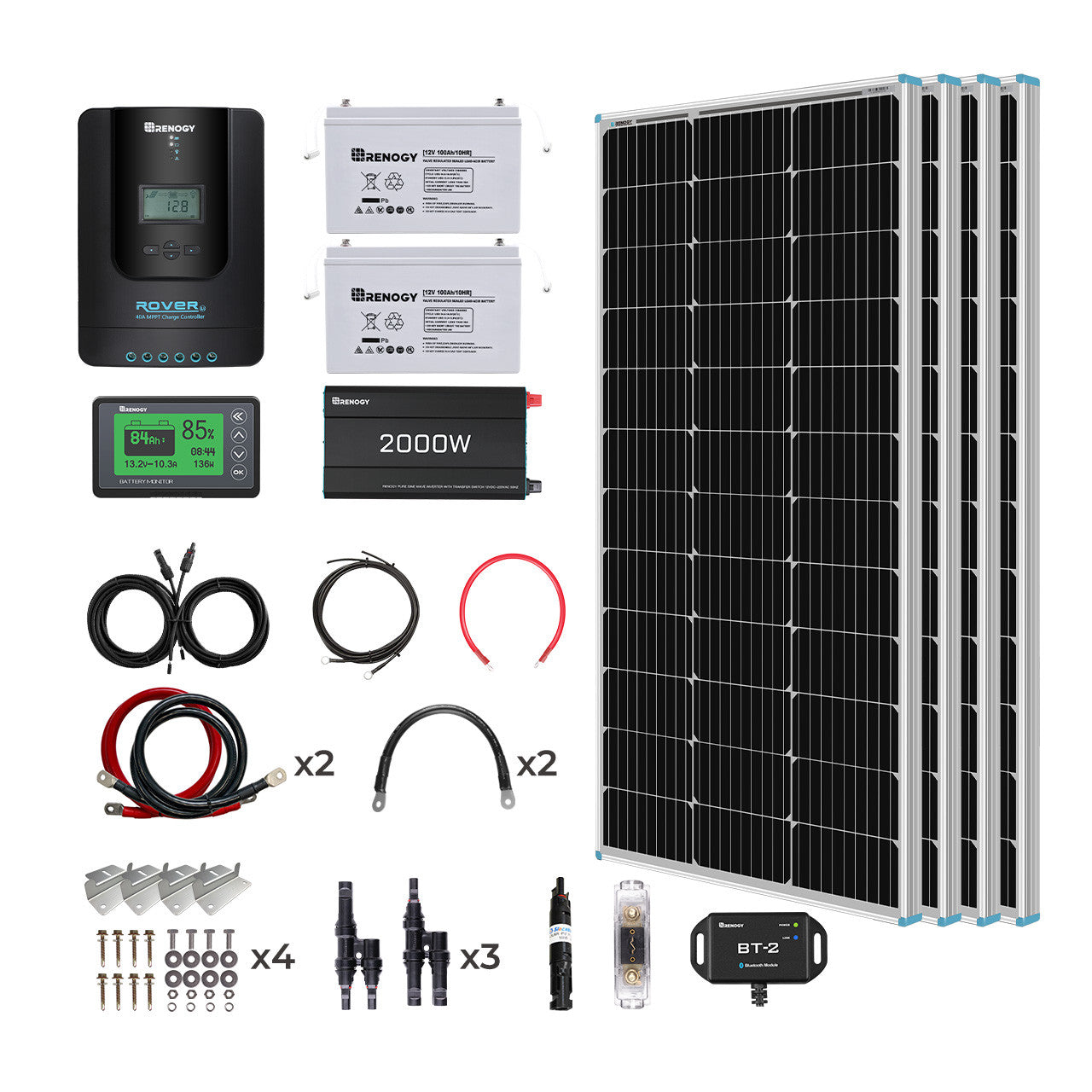

400-Watt 12-Volt Solar Complete Kit w/ 2 Packs of 12-Volt 100Ah Deep Cycle AGM Battery/LiFePO4 Batteries

DESCRIPTION

• Grade A+ solar cells with 22% cell efficiency
• More energy, even in partially shaded areas
• Vibration resistance for flexible mounting
• Easy connection for a quick set up
• 25-year performance warranty

SPECIFICATIONS

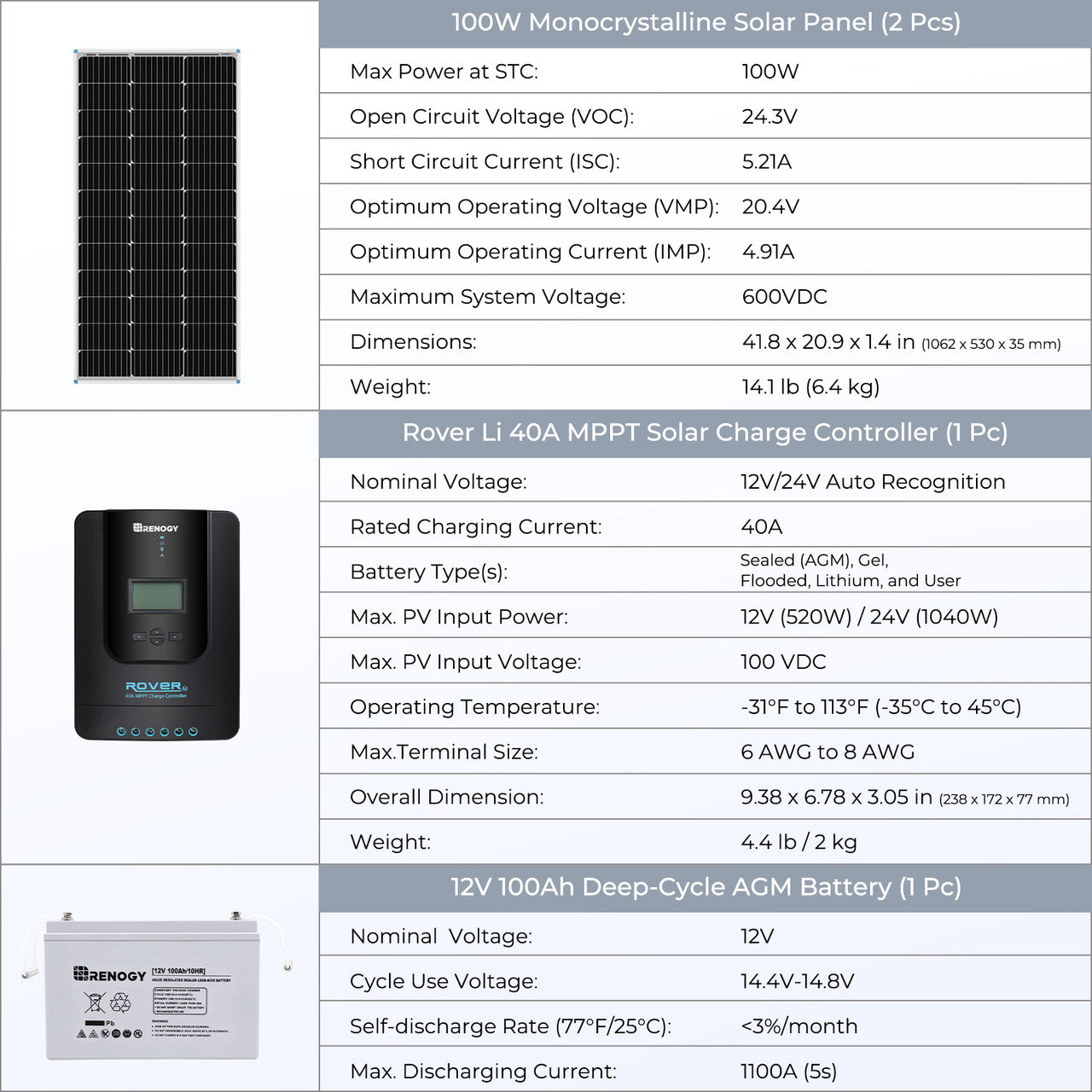

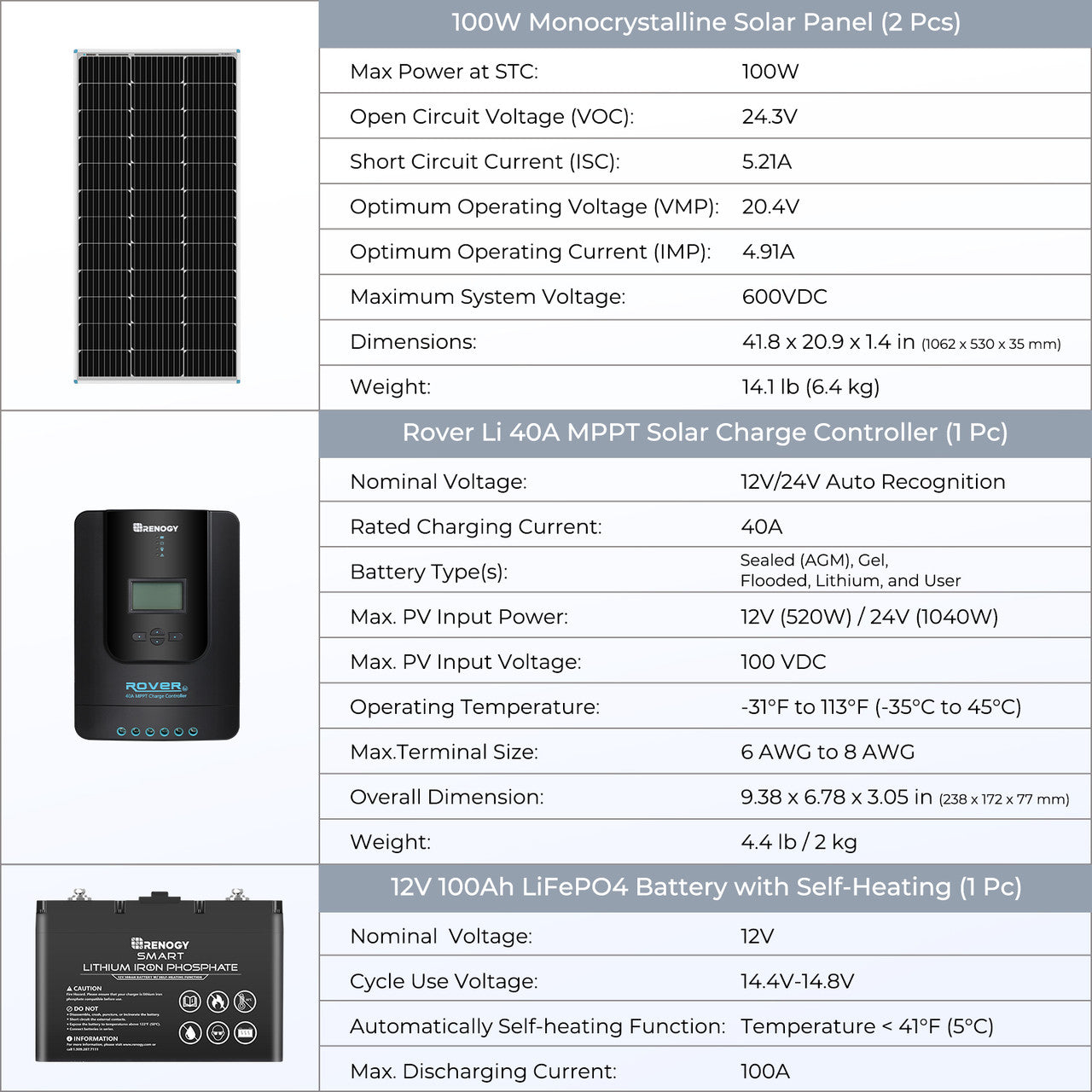

Maximum Power: 100W

Maximum System Voltage: 600V DC (UL)

Open-Circuit Voltage (Voc): 24.3V

Optimum Operating Voltage (Vmp): 20.4V

Short-Circuit Current (Isc): 5.21A

Optimum Operating Current (Imp): 4.91A

Dimensions: 41.8 x 20.9 x1.4 in

Weight: 14.1lbs/6.4kg

Nominal System Voltage: 12V/24V Auto Recognition

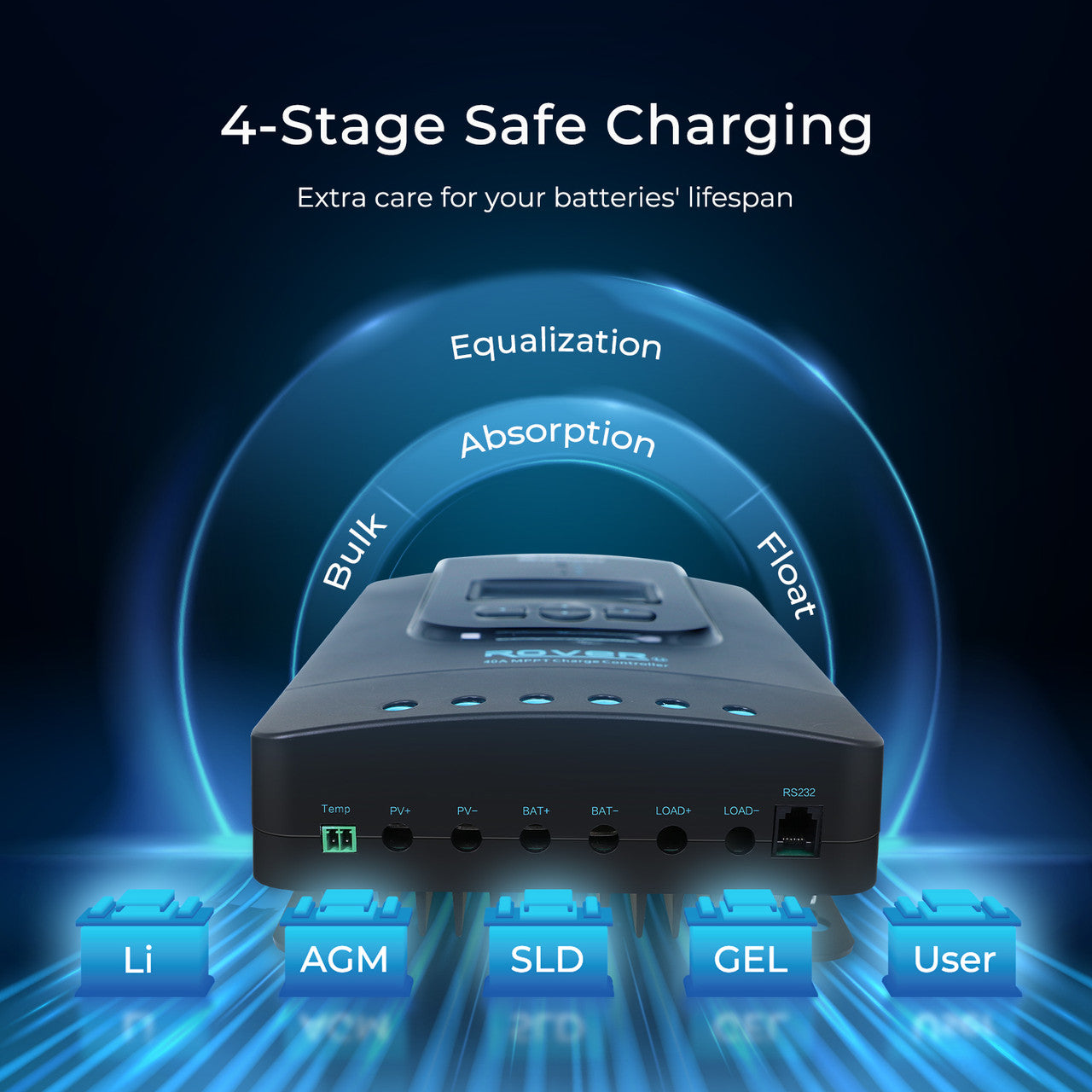

Rated Charge Current: 40A

Max. PV Input Voltage: 100 VDC

Max. PV Input Power: 12V/520W, 24V/1040W

Max Battery Voltage: 32V

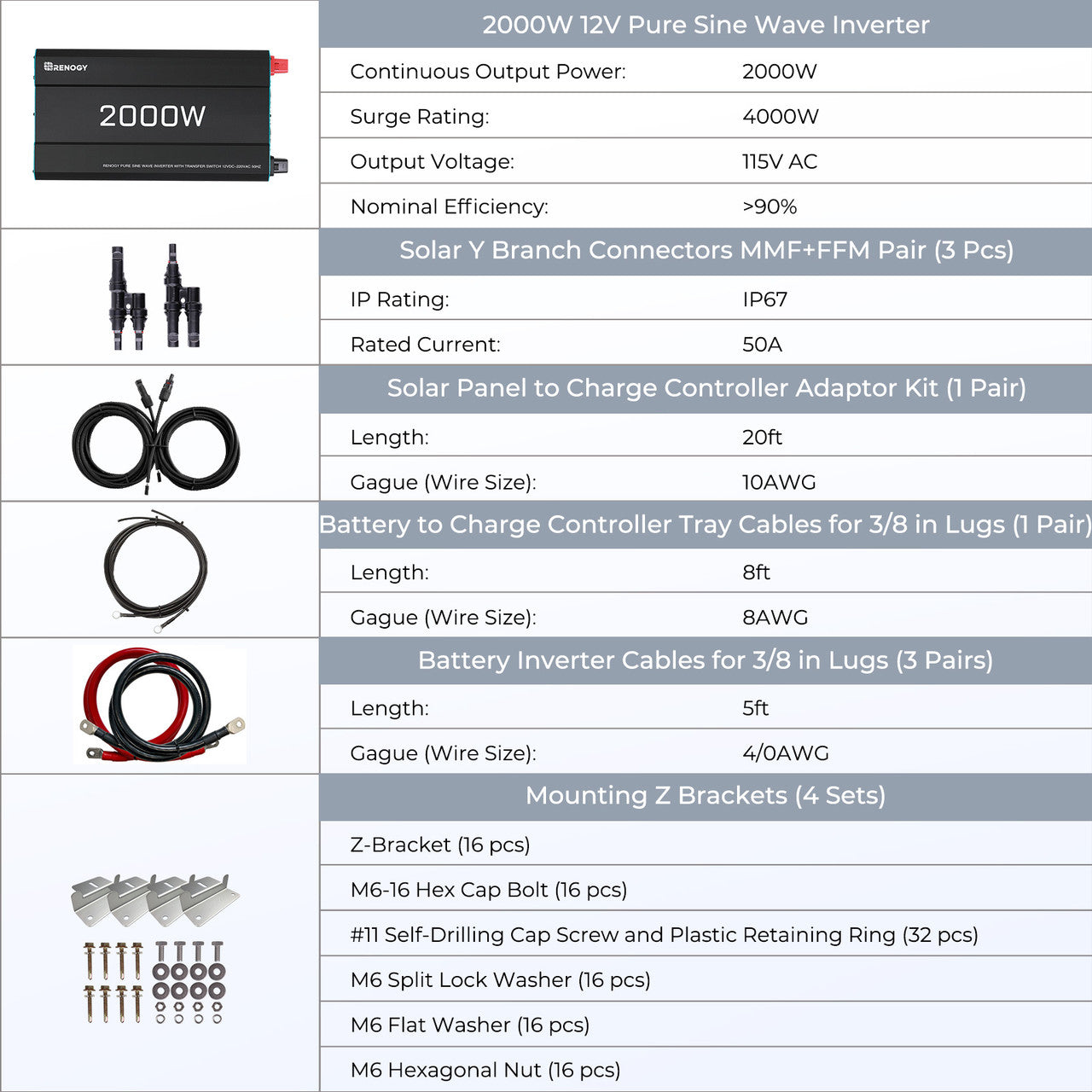

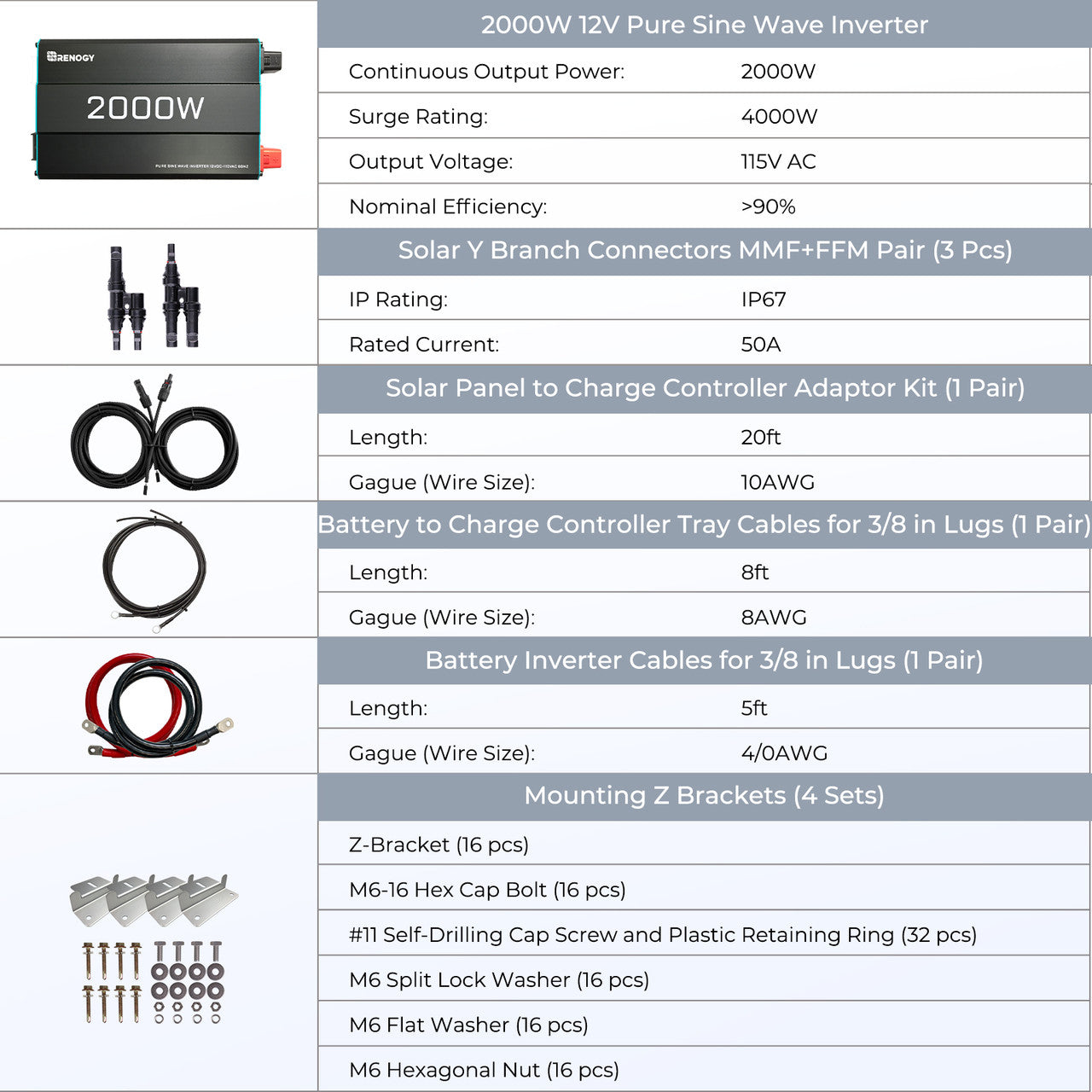

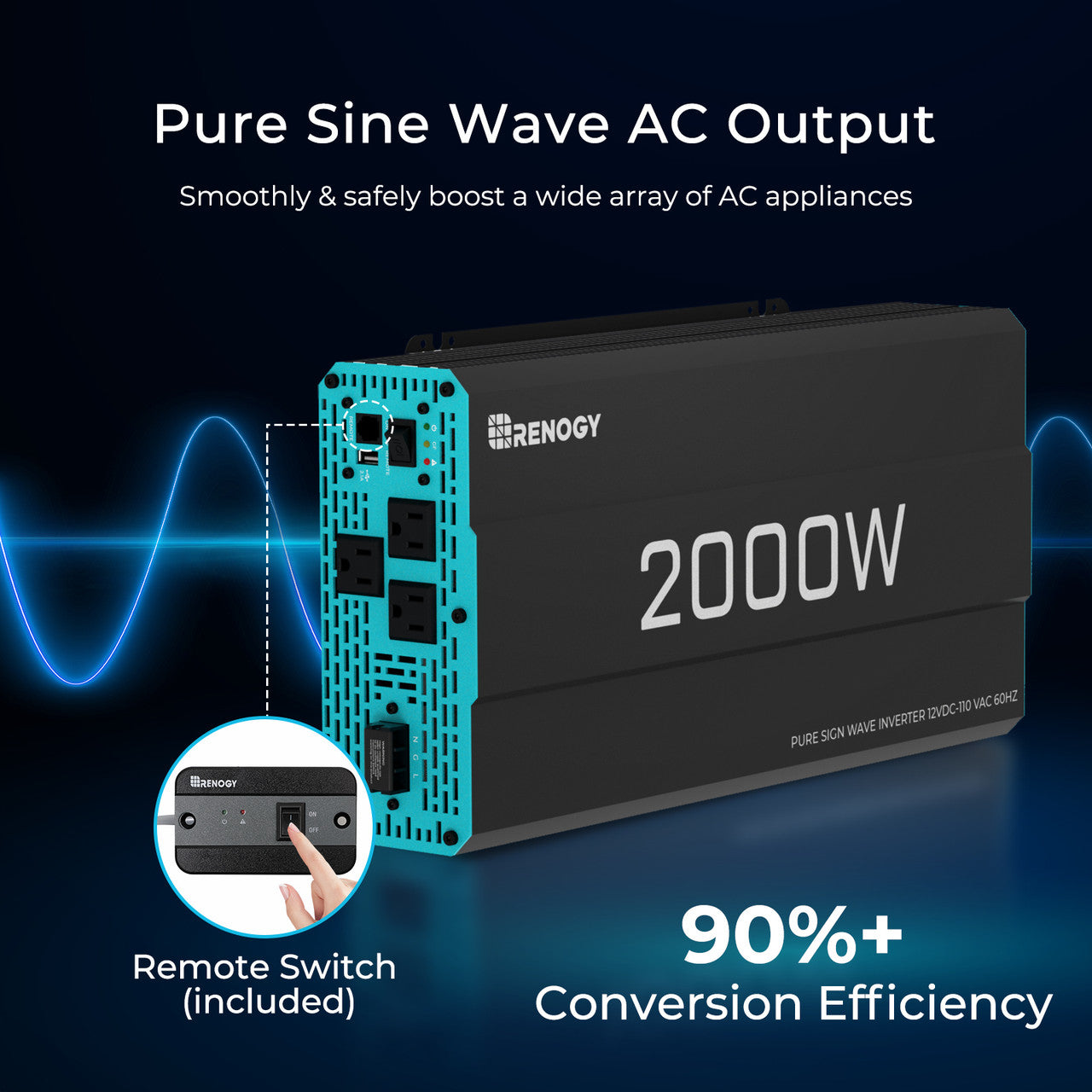

Continuous Output Power: 2000W

Peak Power Rating: 4000W

Output Voltage: 115V

Dimensions: 17.8 x 8.6 x 4 in

Weight: 11.7 lbs

Battery Type: AGM

Rated Capacity: 100Ah (10 Hour Rate to 10.5V)

Nominal Voltage: 12V

Cycle Use Voltage: 14.4V~14.8V

Dimensions: 13.1 x 6.9 x 8.6 in / 332 x 175 x 219 mm

Weight: 63.9 lbs / 29 kg

Battery Type: Lithium Iron Phosphate

Rated Capacity: 100AH

Voltage Range: 10V to 14.8V

Dimensions: 10.6 x 7.6 x 8.1 in (268 x 193 x 205 mm)

Weight: 26.9 lbs. (12.2 kg)

Panels: 25-year power output warranty: 5 year 95% output warranty, 10 year 90% output warranty, 25 year 80% output warranty 10-year material and workmanship warranty

Accessories: 1-year material and workmanship warranty
