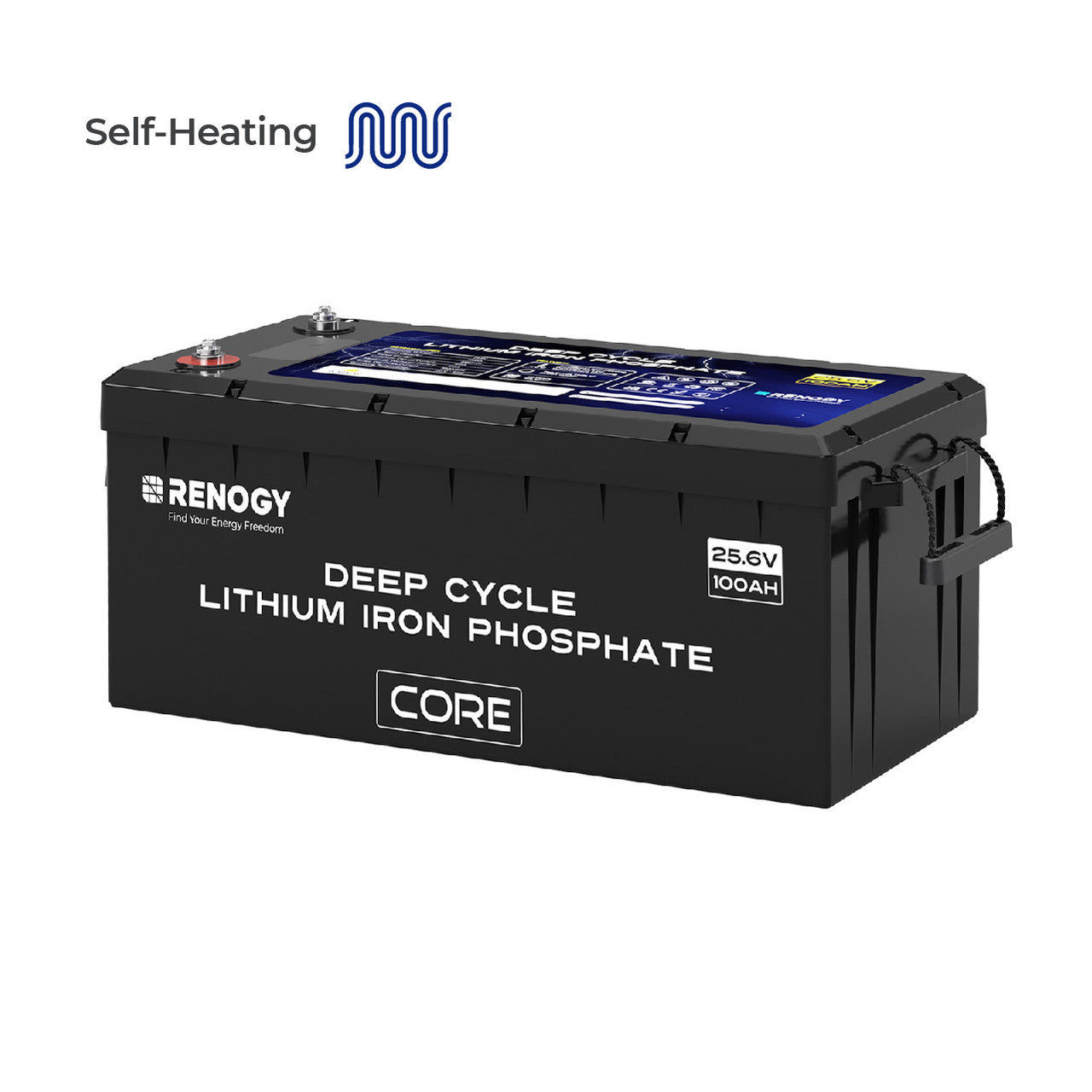

24V 100Ah Core Series Deep Cycle Lithium Iron Phosphate Battery

DESCRIPTION

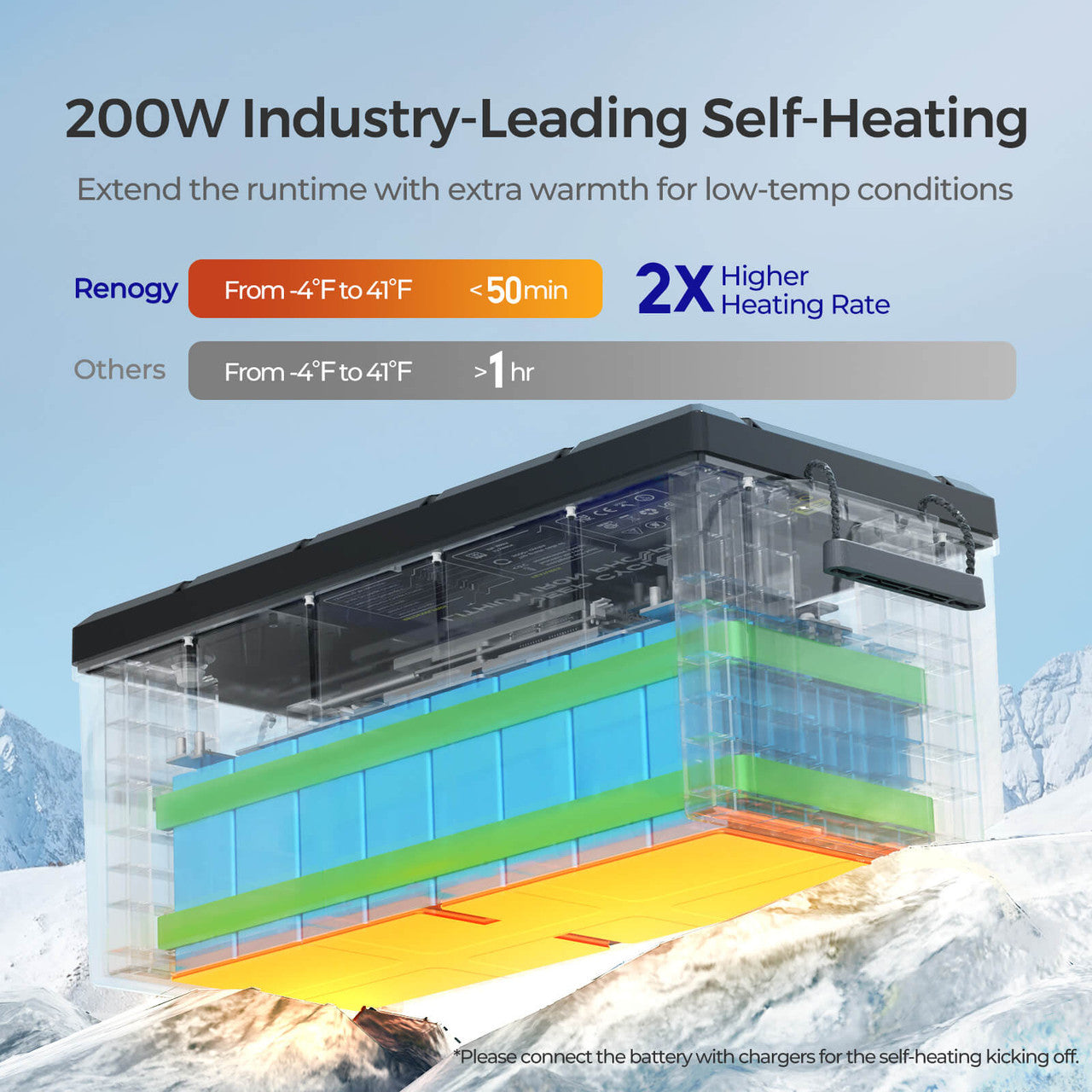

• Industry-leading 200W self-heating for peak cold-weather performance.
• Grade A EV-class cells with 5000 cycles at 80% DOD for reliability.

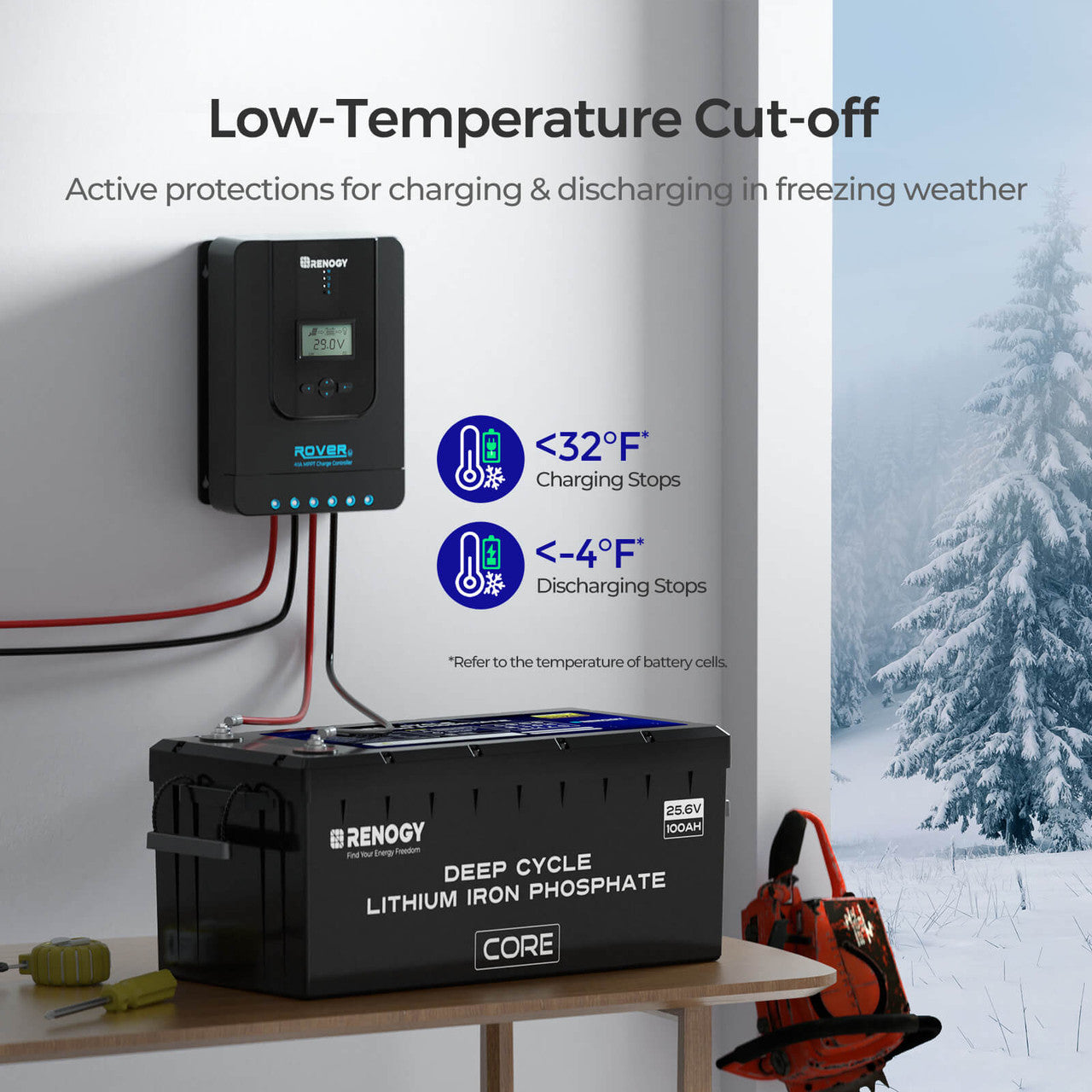

• Low-temp cut-off allows safe charging & discharging, protecting battery.
• Automatic cell balancing optimizes battery life and performance.
• Supports series, parallel, or series-parallel links for versatility

SPECIFICATIONS

Battery Type: Lithium Iron Phosphate

Voltage: 24V

Rated Capacity: 100Ah (0.5C, 25℃)

Voltage Range: 20.0V to 29.2V

Charge Voltage: 29.0V

Maximum Charge Current: 100A

Maximum Discharge Current: 100A

Peak Discharge Current: 300A @ 5s

Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL)

Charge Temperature Range: '-4°F to 131°F (-20°C to 55°C)

Discharge Temperature Range: '-4°F to 140°F (-20°C to 60°C)

Storage Temperature Range: '-13°F to 149°F (-25C to 65°C)

Operation Relative Humidity: 10% to 95%

Connection Method: Series (Up to 2) Parallel (Up to 8) Series & Parallel (2S8P)

Terminal Bolt Size: M8 x 1.25 x 15 mm

Recommended Terminal Torque: 10 N·m

Housing Material: ABS & PC

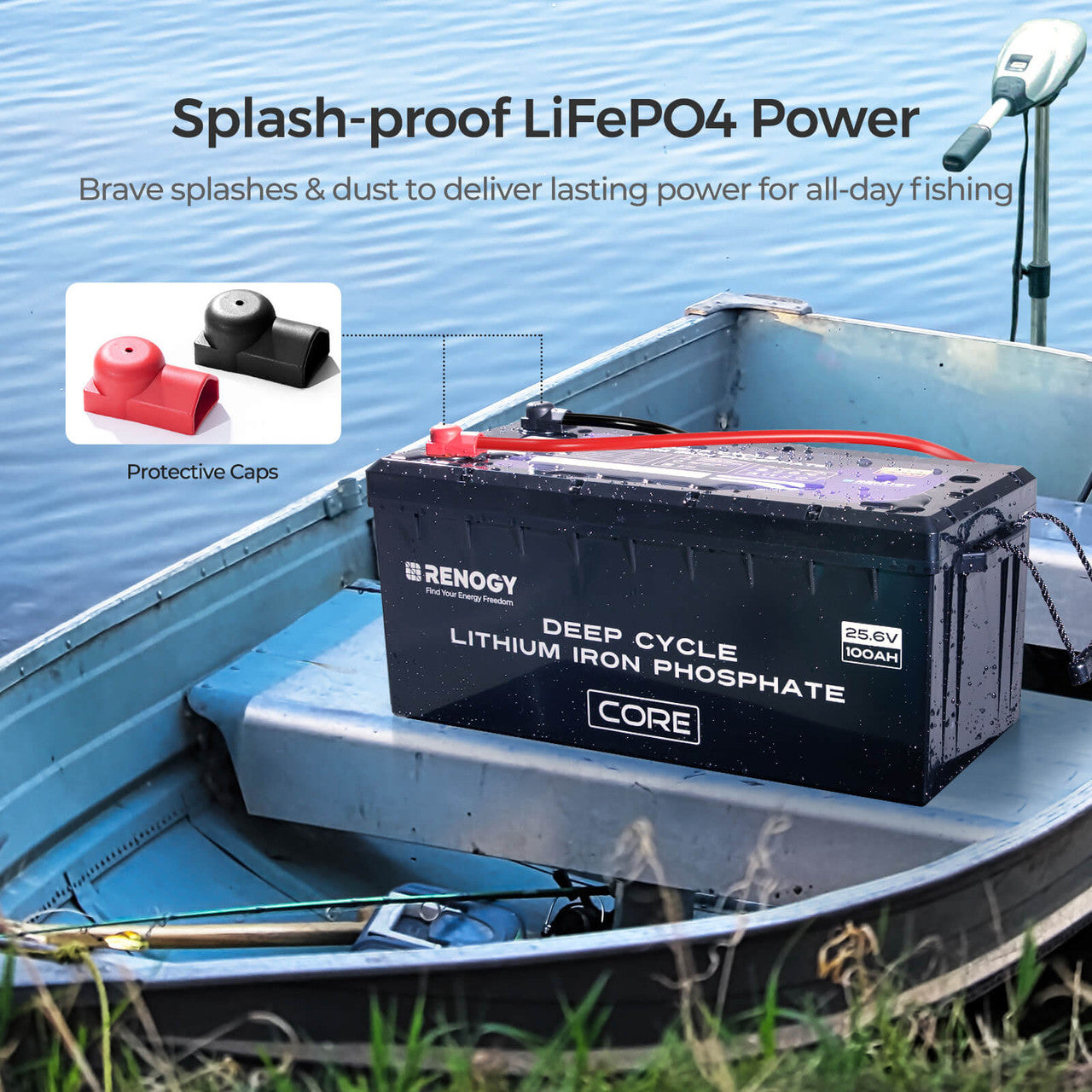

Protection Rating: IP65

Dimensions: 20.55 x 9.45 x 8.62 inch (522 x 240 x 219 mm)

Weight: 46.3 lbs. (21.0 kg)

Long Terminal Bolts (2): M8

Material and Workmanship Warranty: 5 Years

Certifications: UL, RoHS, MSDS, UN38.3, FCC , PSE, CE, UKCA
