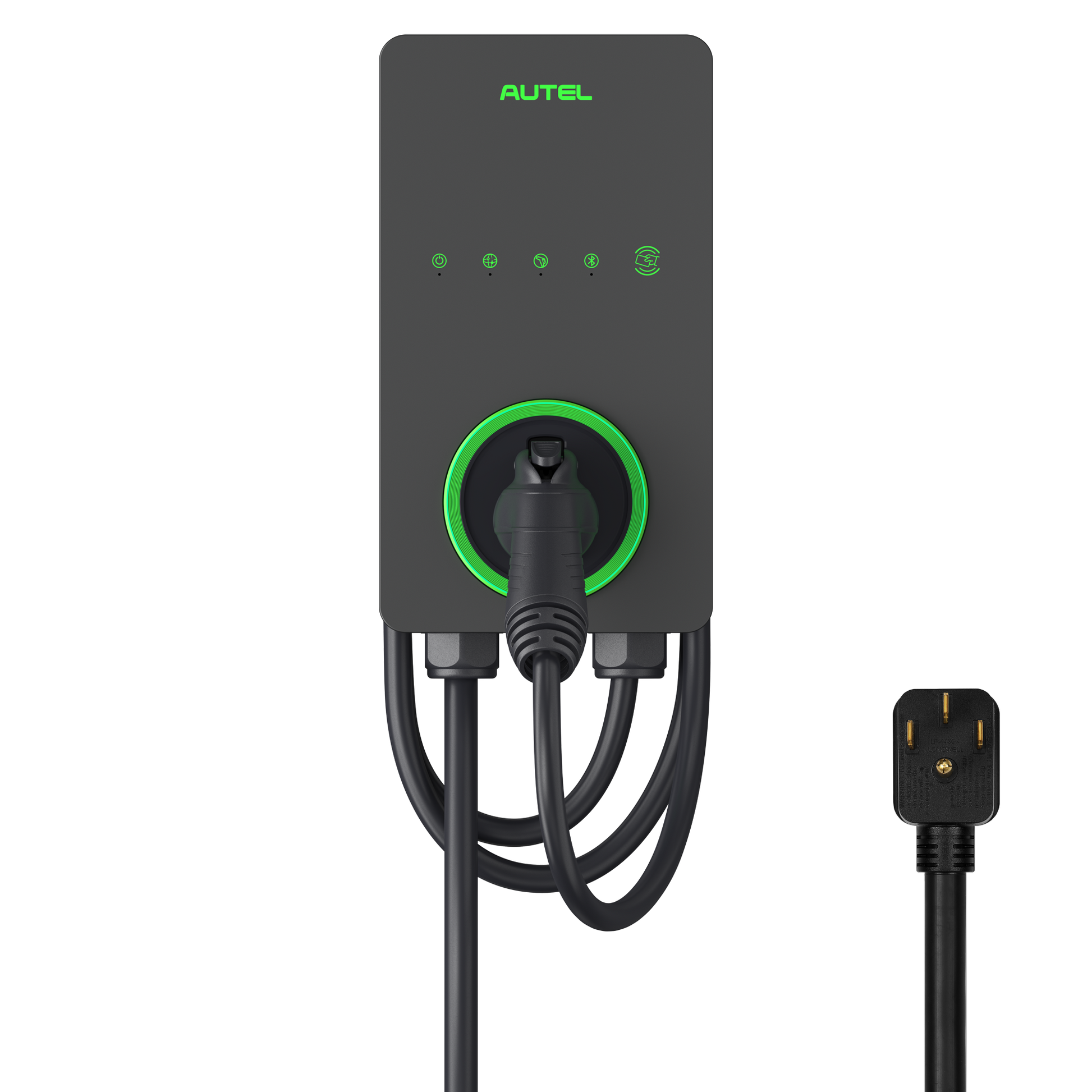

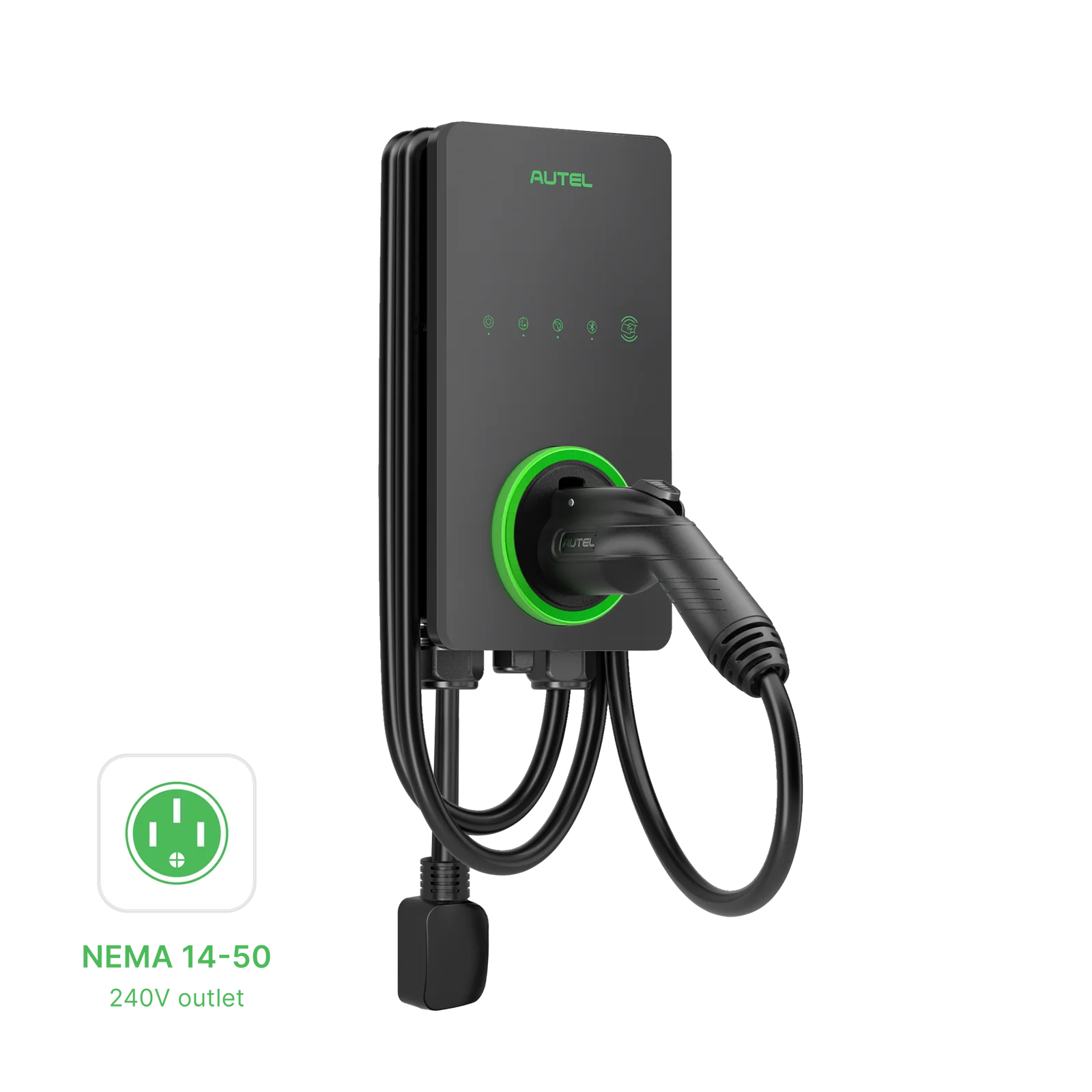

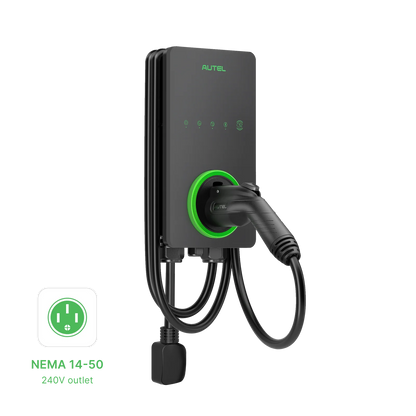

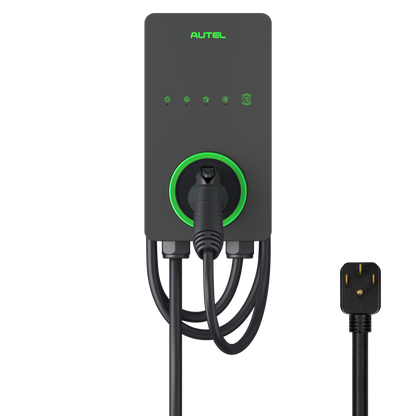

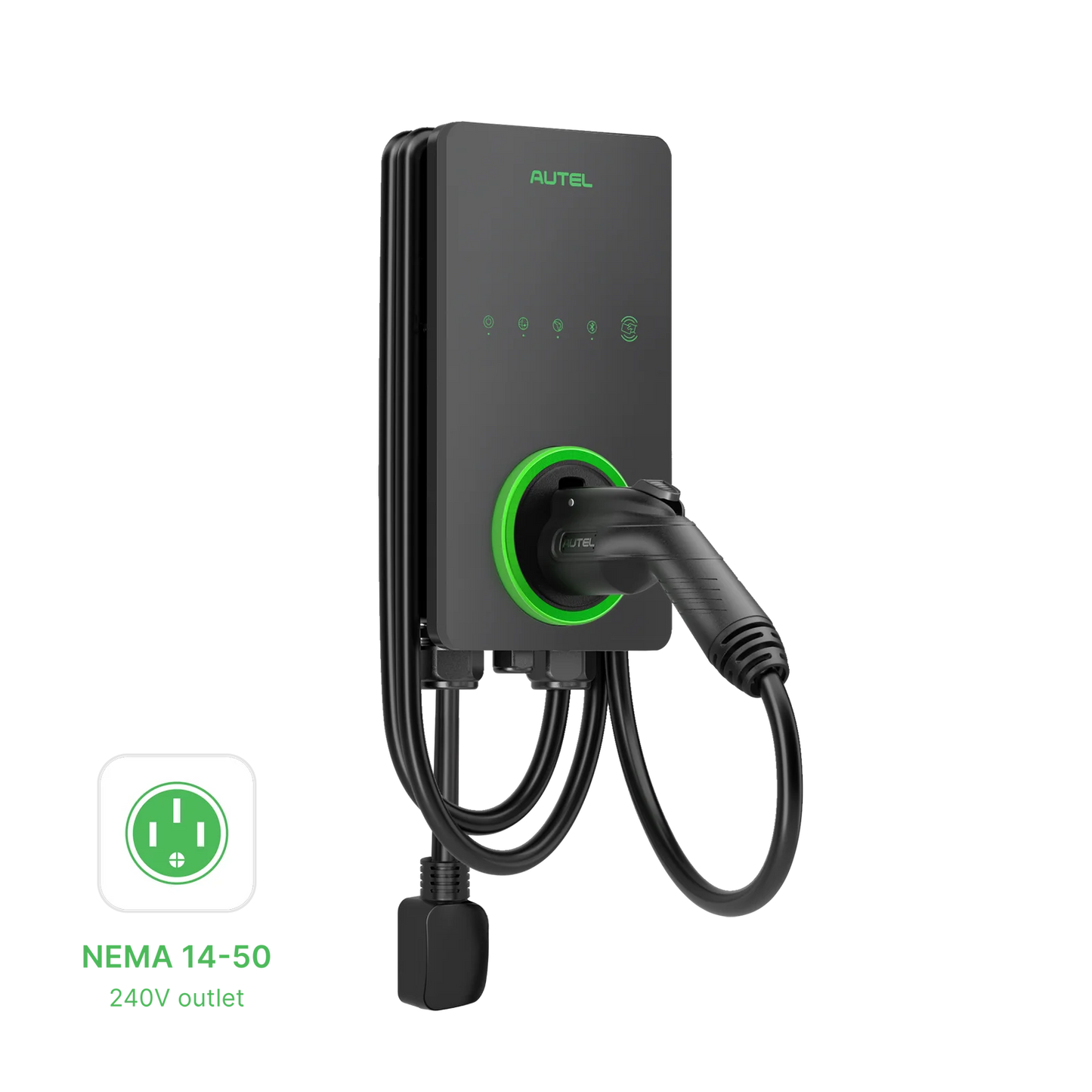

AC Lite Home 40A EV Charger Dark Grey

DESCRIPTION

• Compatible with All EVs.
• 40A, 9.6kW for Fast Charging
• Connect via Bluetooth/Wi-Fi
• Easy to Control, Manage and Schedule Charging via App
• 25ft Cable Length for Flexible and Convenient Charging

SPECIFICATIONS

Model Number

MAXI US AC LW10-N14

Connector Type

SAE J1772

Dimensions (H*W*D)

13.2” x 7.4” x 3.8” (336 x 187 x 97 mm)

Weight

15.4 lbs. (7 kg).

Input cord

NEMA 14-50

Warranty

3 years warranty

Charging Cable Length

25 ft. (7.5 m)

Connectivity

Bluetooth, Wi-Fi

User authentication

App, AutoStart, RFID card

Output Rating

Maximum 9.6 kW (240 VAC @ 40 A model)

Input Rating

208/240 VAC, 60 Hz, single phase @ 16 A, 24 A, 32 A, 40 A, 48 A, 50 A

Protection

Overcurrent, overvoltage, undervoltage, integrated surge protection

Operating Temperature

-40 to 131 °F (-40 to 55 °C)

Mounting

Wall-mounted or floor using a pedestal
